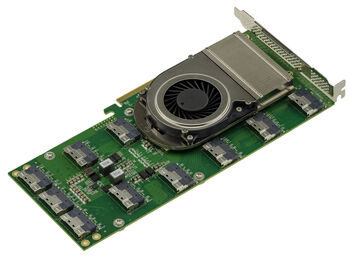

PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications

zoom

see also : PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications

non-contractual photo

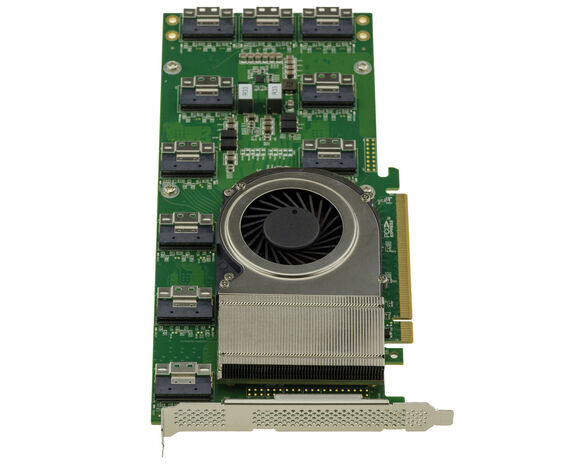

PCIe 4.0 Switch Controller Card with 10 SFF-8654 8i Ports for Replicating 10 Gen4 x8 Ports for x8 GPUs and Industrial Applications

PCIe 4.0 Switch Card with 10 SFF-8654 8i Ports for 10 x8 Graphics Cards

Ref. Carte PCIe 4.0 10x SFF8654-8i Switch - MODE x8
KALEA-INFORMATIQUE
3760306799868
New 512.42 € Not including tax 614.90 € Including tax

In stock

quantity

Back in stock notification
Receive an alert by email when your choice is in stock
Your e-mail*:
Close

Send this page to a friend

Product Details

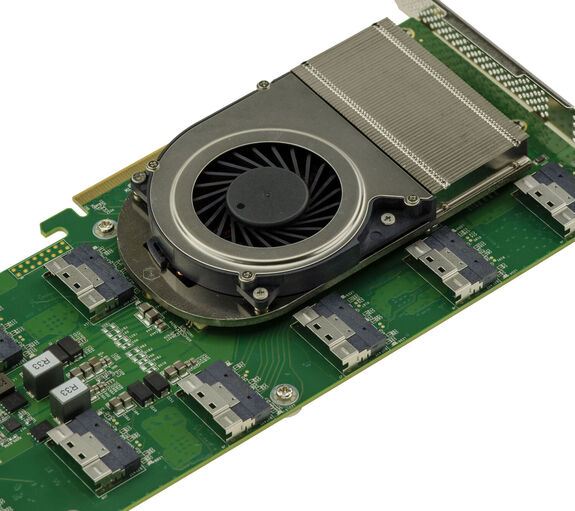

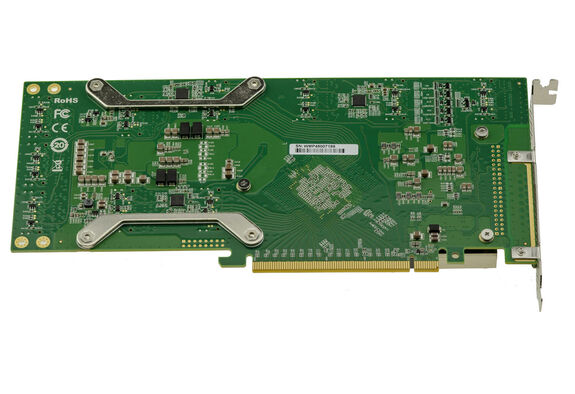

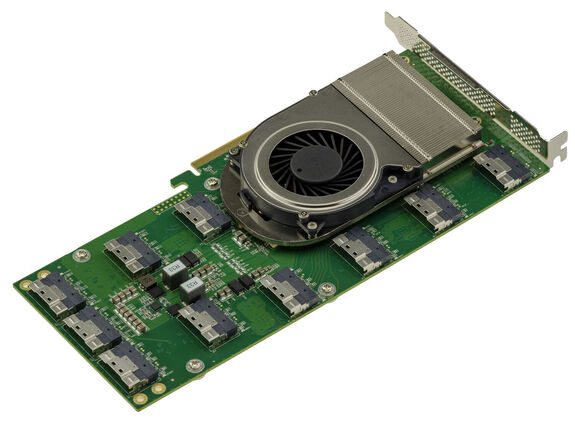

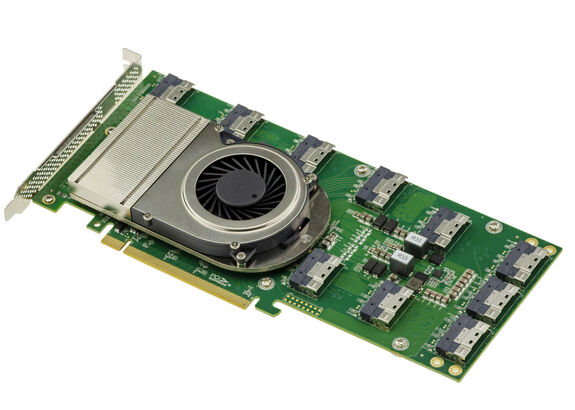

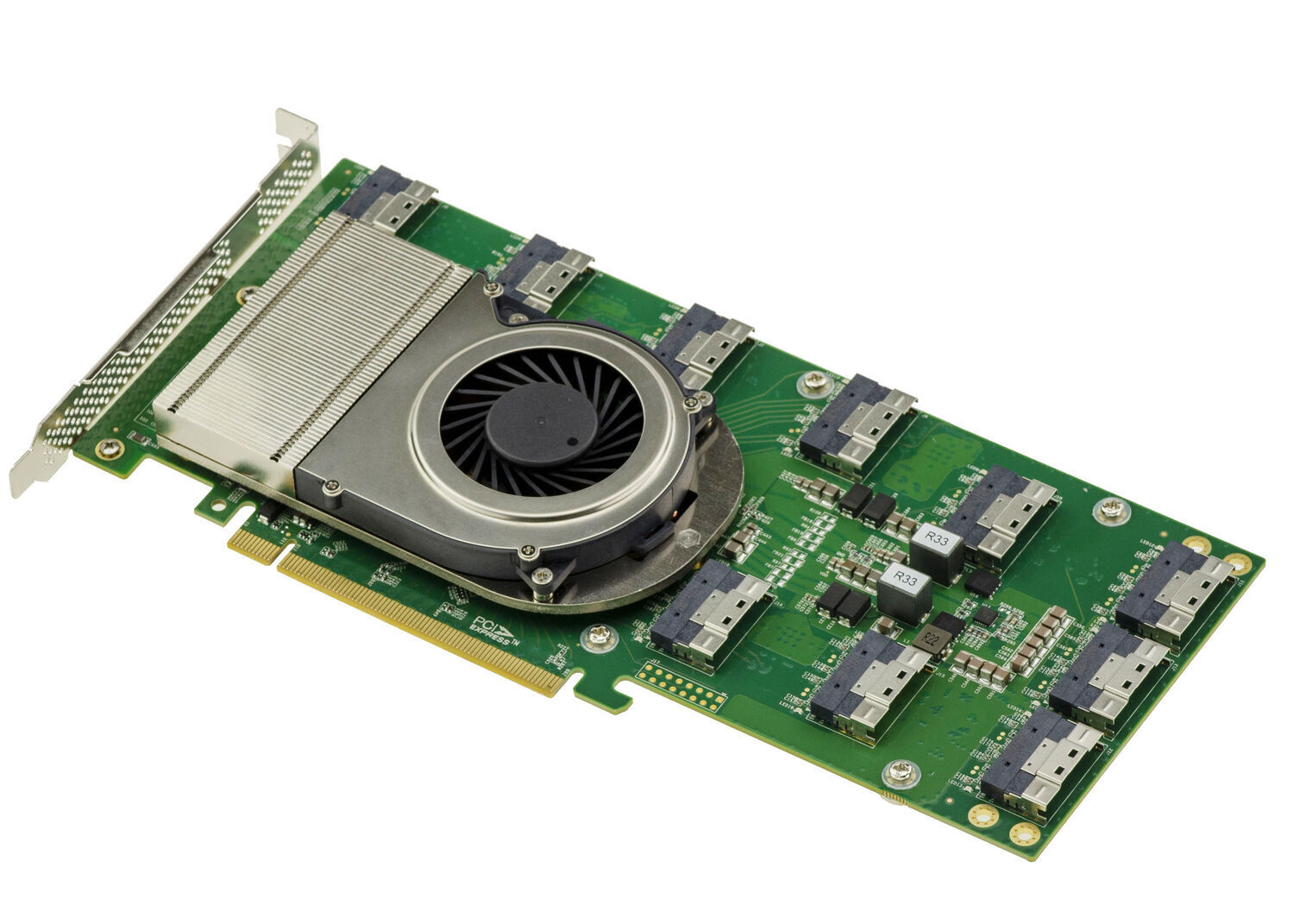

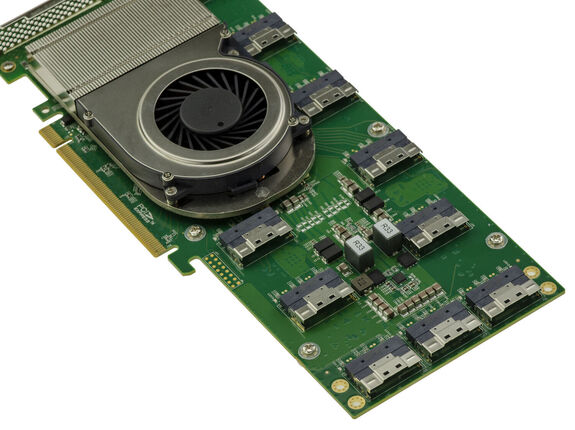

10-port NVMe PCIe 4.0 x16 switch card based on the Broadcom PEX88096 controller. Equipped with its own PCIe switching functionality, it supports multiple PCIe lane allocation modes, including 20×(x4), 10×(x8), or 5×(x16).

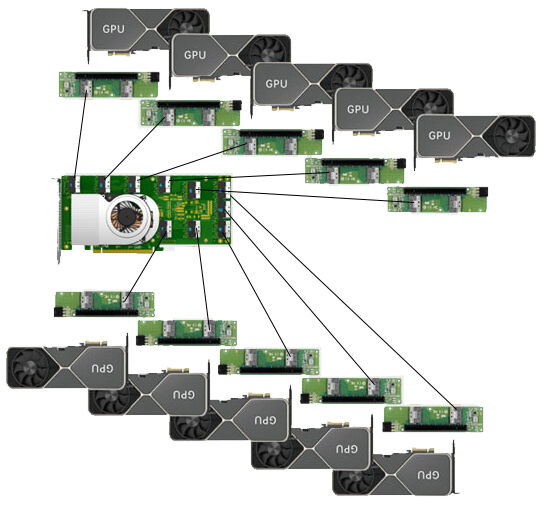

Carte contrôleur de type Switch PCIe 4.0 avec 10 ports SFF-8654 8i pour réplication de 5 ports en x16 IMPORTANT: The configuration of 20 ports (x4) OR 10 ports (x8) OR 5 ports (x16) is not adaptive; it is set at the time of card production. The model offered here is configured with 10 ports (x8), allowing, for example, the connection of 10 graphics cards in x8.
Please contact us if you would like a different configuration.



With a transfer rate of up to 256 Gb/s, this card can directly connect up to 20 U.2 NVMe SSDs. It is specifically designed for high-end applications such as SSD performance testing and GPU expansion testing, while offering enterprise-grade NVMe connectivity for a wide range of standard x86 servers and workstations.

Designed as a high-capacity expansion solution for flash servers, this card leverages ultra-high-bandwidth, low-latency PCIe 4.0 connectivity, ensuring accurate, real-time test data and helping to accelerate product development and validation cycles.

Technical Specifications:
PCI Express 4.0 x16 bus.
Broadcom PEX88096 controller.
Switch card operating in the following modes: 10 * PCIe 4.0 x8.
10 SFF8654 8I ports.
Throughput: 256 Gb/s.
Hardware adapter independent of the operating system, compatible with all Windows, Mac, Linux, etc. systems.
Operating temperature 0 °C to 55 °C.
Min/max power consumption: 20.532W/23.592W.
PCB dimensions: 111 × 267 × 20 mm.
