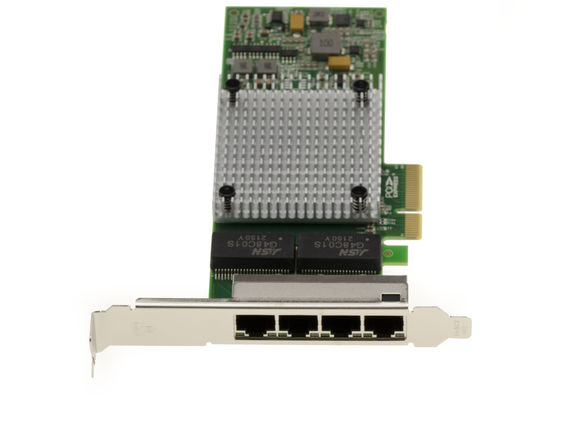

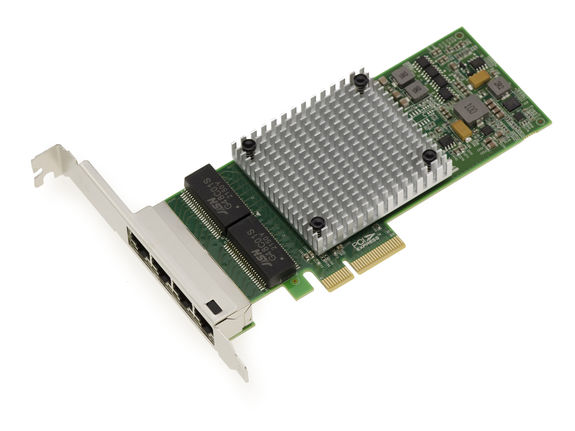

PCIe x4 Network Card 4 Gigabit LAN RJ45 Ethernet 10 100 1000 1G - Dual CHIPSET Intel I350AM2 NIC - Industrial Grade

4-port gigabit ethernet network adapter with PCIe x4 bus interface based on Intel chip.

Developed on two Intel dual-port ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controllers, it allows four ports to operate simultaneously in full-duplex mode for high-performance network communications over gigabit ethernet connections.

Link aggregation can also be used to expand bandwidth and save PCIe channel resources. In addition, it does not occupy bus bandwidth and saves PCI Express channel resources.

Specification
Chipset:Dual lntel l350-AM2
Host lnterface: PCl Express·2.1  5GT/slanex4 lane
Supports10/100/1000Mbps data rate auto negotiation
Each port can send and receive eight queue

Support : WoL, Jumbo Frames, DPDK and PXE.

Compliant IEEE 802.3ab, 802.3u, 802.3z, 802.1Qav, 802.1Qbu, 802.1Qbv, 802.3br, 1588, 802.3ad, 802.3az Energy Efficient Ethernet.

System Requirement

Windows XP/7/8/10/ista/Server2003/Server2008/Server2012/ Linux2.4.xor above
