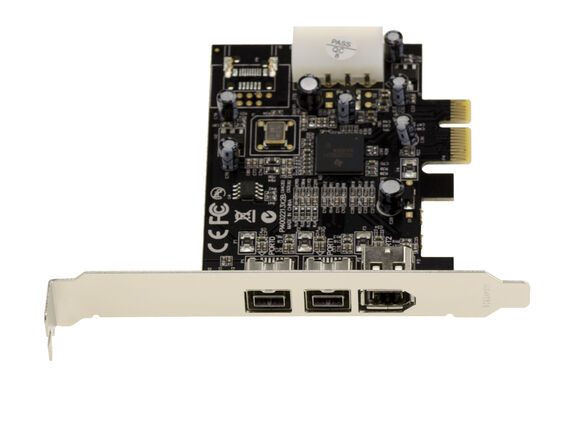

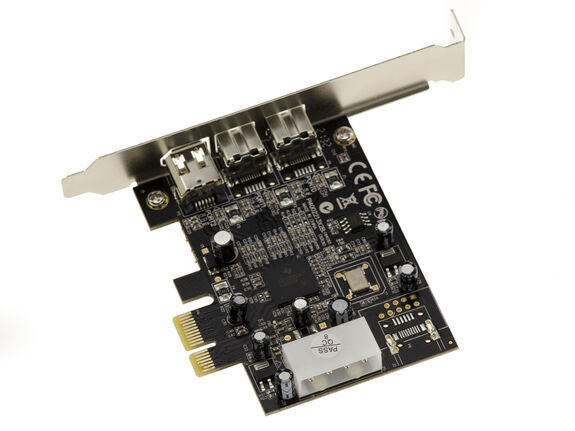

PCIE FIREWIRE 800 and 400 IEEE1394A and IEEE1394B Controller Board on 1x PCI Express Port (PCI-E) - 2+1 Outputs - XIO2213BZAY TI Chipset

Specification
Ports:
2x 1394b (9-pin, Bi-lingual)
1x 1394a (6-pin)
Supports Data Transfer Rates of: 100Mbps / 200Mbps / 400Mbps / 800Mbps

TI Chipset : TEXAS INSTRUMENTS XIO2213BZAY.
No Driver required (plug-and-play)
Simultaneous Operation of Multiple High-performance Devices
Supports Hot-swapping and Plug-n-Play Connection of Peripheral Devices
Works with Various Types of FireWire 800 (1394b) and 1394a Devices Including Portable Hard Disk, DV Camcorder, Digital Camera, CD-RW/DVD-ROM Drive and Other Audio/Video Devices
1-Lane (x1) PCI-Express with Transfer Rate 2.5Gb/s Full Duplex Channel
Support Provisions of IEEE P1394b Revision 1.33+
Compliant with PCI-Express Revision 1.0a
Compliant with IEEE 1394 OpenHCI Specifications V1.0 and V1.1
Compliant with IEEE 1394-1995 for a High Performance Serial Bus
Compliant with IEEE 1394a-2000 Standard
Fully Backward Compatible to 1394a Specification
Fully Interoperable with FireWire, iLink, and SB1394 Implementation of IEEE 1394 Standard
