Features :

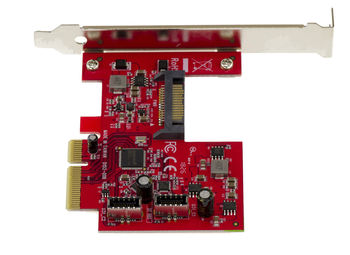

USB3.1 PCIe x4 Lane Host Adapter with PCIe Gen3 x2 fast chipset
Two USB 3.1 Type C Internal Key A 20Pin Headers
Provides 5V3A USB bus power each USB 3.1 Type C port
Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard
Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1
Compliant with USB Attached SCSI Protocol Specification 1.0
All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
Support USB3.1, USB3.0, USB2.0 and USB1.1 devices
Compliant with PCI Express Specification 3.0
Low Profile PCIe Form Factor
Regular size PCIe bracket on board and Low Profile PCIe Bracket included
Supply USB 3.1 5V3A bus power. When optional 15Pin SATA power installed, Type C power from sufficient 12V power supply instead of 25W PCIe x4 slot
Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance
Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required
Provides Asmedia 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2 driver
Mac 10.11 in-box driver Not support USB3.1
Fully RoHS compliant
Chipset : Asmedia ASM2142
