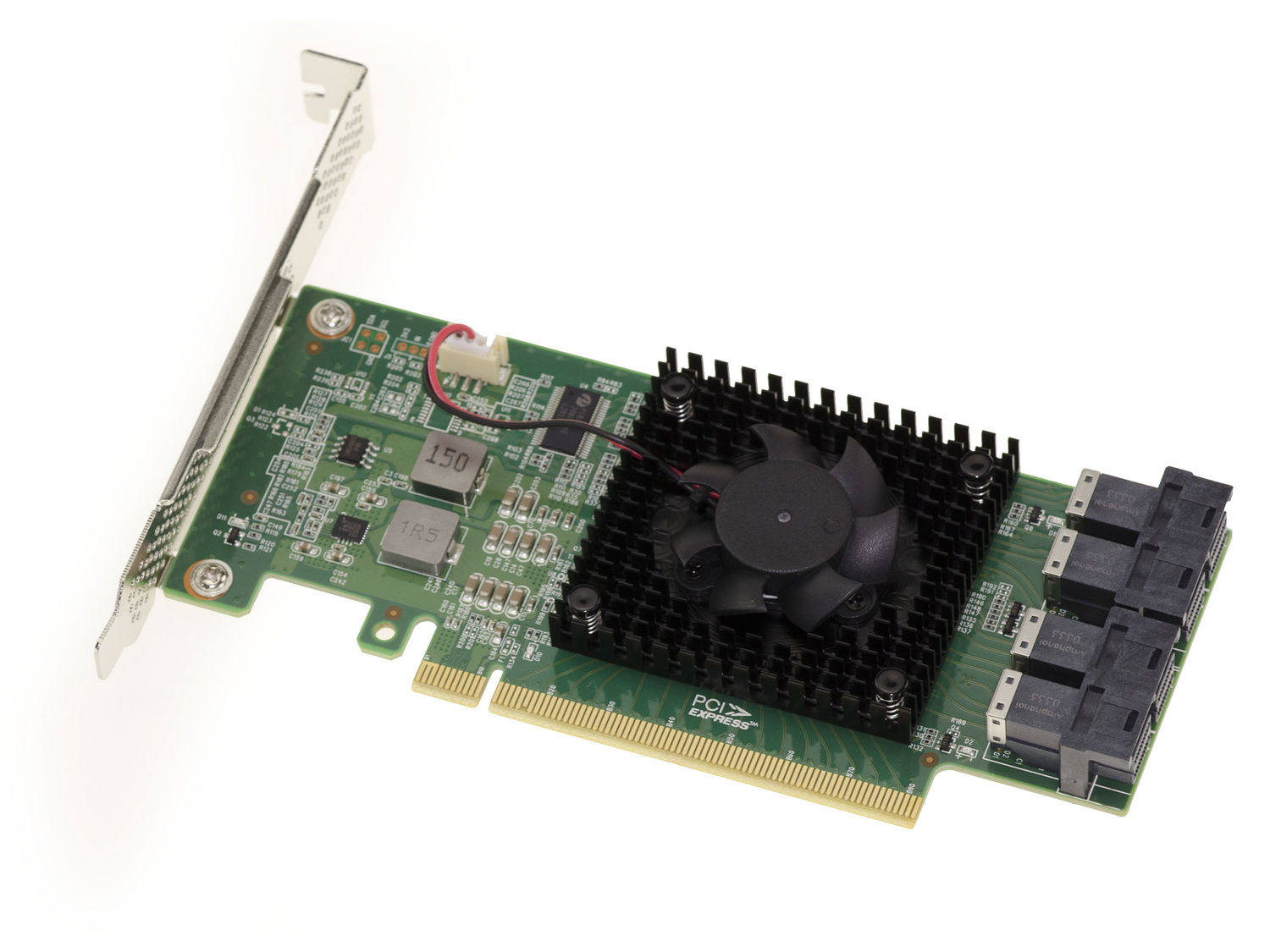

Carte PCIe 3.0 16x pour 4 SSD U.2 NVMe (U2 NGFF) ou 4 Ports PCIe x4. Multi Host Switch Card. CHIPSET PLX PEX 8747 128Gb/s

Functional Characteristics
Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).
Compliant with PCI Power Management Spec, r1.2.
Microsoft Vista Compliant.
Supports Access Control Services.
High Performance. Non-blocking switch fabric, Full line rate on all ports.
Quality of Service. Eight traffic classes per port.
Reliability, Availability, Serviceability.
Supports PCIe NVME ports.
The PCIe transfer rate up to 128Gb/s and the SSD transfer rate up to 32Gb/s.

HARDWARE

Number of Device : 4 Internal
I/O Controller : PLX PEX8747
Host Bus Type : PCI Express 3.0
Compatible Device : 4 NVMe U.2 SSD
Interface : 4*SFF-8643

CONNECTORS(S)

Device Connectors : 4*NVMe SSD
Host Connectors : PCI Express x16

OPERATING SYSTEM

OS supported list : Windows, Red Hat, Linux, Suse, VMware, MAC OSX, FreeBSD

ENVIRONMENTAL

Humidity : 15% – 90%
Operating Temperature : 5°C to 50°C (41°F to 122°F)
Storage Temperature : -25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension : 160mm x68.9mm
Product Weight : 117.3g

WHAT'S IN THE BOX

Included in Package :
1 - PCI Express x16 to U.2(SFF-8643) NVMe Switch Adapter
1 - full-height bracket (installed)
1-  low-profile bracket
