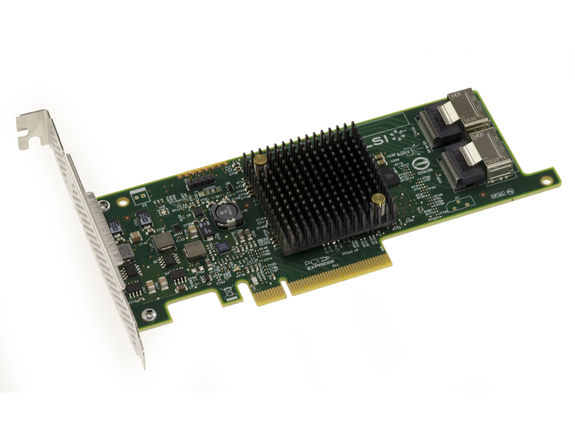

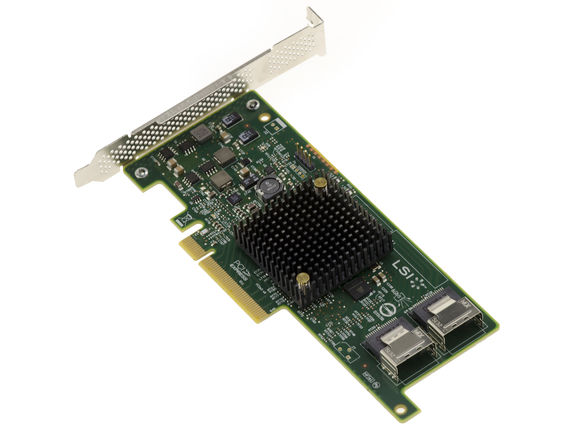

PCIe 3.0 SAS + SATA Controller Board - 6GB - 8 INTERNAL PORTS - LSI 9217-8i - Raid 0 1 1E 10

Key Features:
8 internal 6Gb/s SAS+SATA ports
8 lanes, PCI Express 3.0
Low profile form factor design
Two x4 internal mini-SAS connectors (SFF8087)
LSISAS2308 6Gb/s SAS+SATA Controller
Supports up to 256 SAS or SATA end devices
Supports SSDs, HDDs and tape drives
Offers Integrated RAID (0, 1, 1E and 10)

Key Advantages:
Provides internal connectivity in a low profile form factor
8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applications
High performance with 6Gb/s data transfer rates

IO Controller LSI SAS2308/ Fusion MPT 2.0
Storage Connectivity Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth Half Duplex 600 MB/s per lane
Port Configurations 8 ea, x1 ports (individual drives) 2 ea, x4 wide port
Host Bus x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates Half Duplex x8, PCIe, 8000 MB/s
Physical Dimensions Low Profile (2.6” x 6.6”)
Connectors Two mini-SAS internal connectors (SFF8087)
Brackets Full height and low profile
Cable Support Passive Copper
PCI Card Type 3.3 V Add-in Card
Operating Voltage +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal) 9.8W
Device Support 256 Non-RAID devices
Integrated RAID (IR) 14 spread across 2 volumes RAID 0 10 per volume / RAID 1 2 per volume plus hot spare / RAID 1E 10 per volume / RAID 10 10 per volume
Environmental Operating 0 o C to 55 o C 5 to 90% Non-condensing
Storage -45°C to 105°C 5 to 90% Non-condensing
MTBF >2,000,000
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
