PCIe SAS + SATA Expander Card - 6GB - 24 SAS 2X36 CHIPSET Ports

Product Description

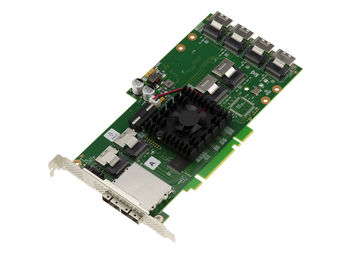

LRSA6X36-24I 6Gb/s SAS HBA Expansion Controller Card
Product Model：LRSA6X36-24I
Product Name：24 Port SFF-8087/8088 SAS/SATA Expansion Card
Main Chipset：LSISAS2X36
Internal Interface：6*4Mini-SAS(SFF-8087)
External Interface：2*Mini-SAS(SFF-8088)
Support Equipment: 24*SAS/SATA/SSD 6Gbps

Product Paramenters
LRSA6X36-24I is 24-port, 6Gb/s SAS to PCI Express expander card. It is third generation of SAS/SATA expanders that incorporates the latest enhancements in SAS technology.

Features
24 internal 6Gb/s SAS+SATA ports (6 and 3Gb/s SAS ), (6.0, 3.0, and 1.5Gb/s SATA )
Six internal mini-SAS connectors (SFF-8087) to internal storage
Two external mini-SAS connectors(SFF-8088) or internal mini-SAS connectors (SFF-8087) from host.
Supports SSDs, HDDs
