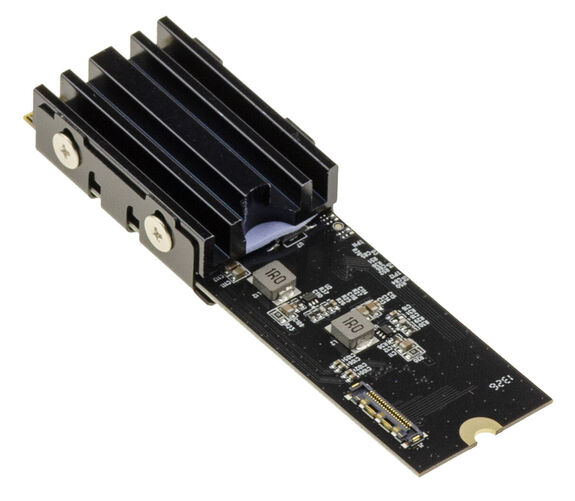

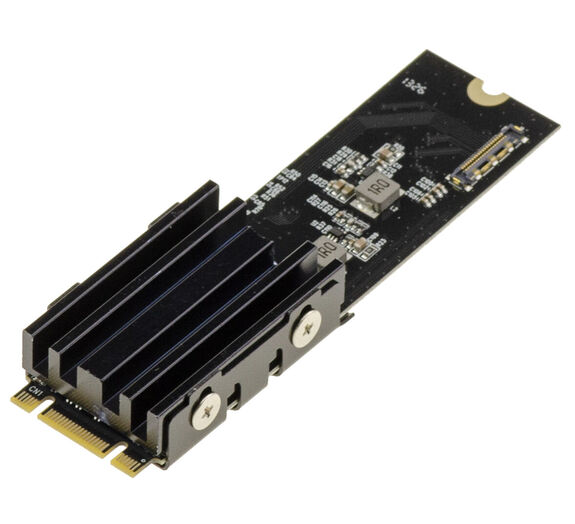

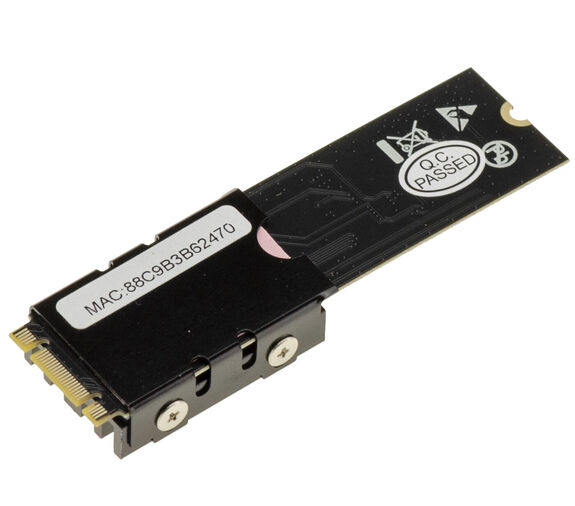

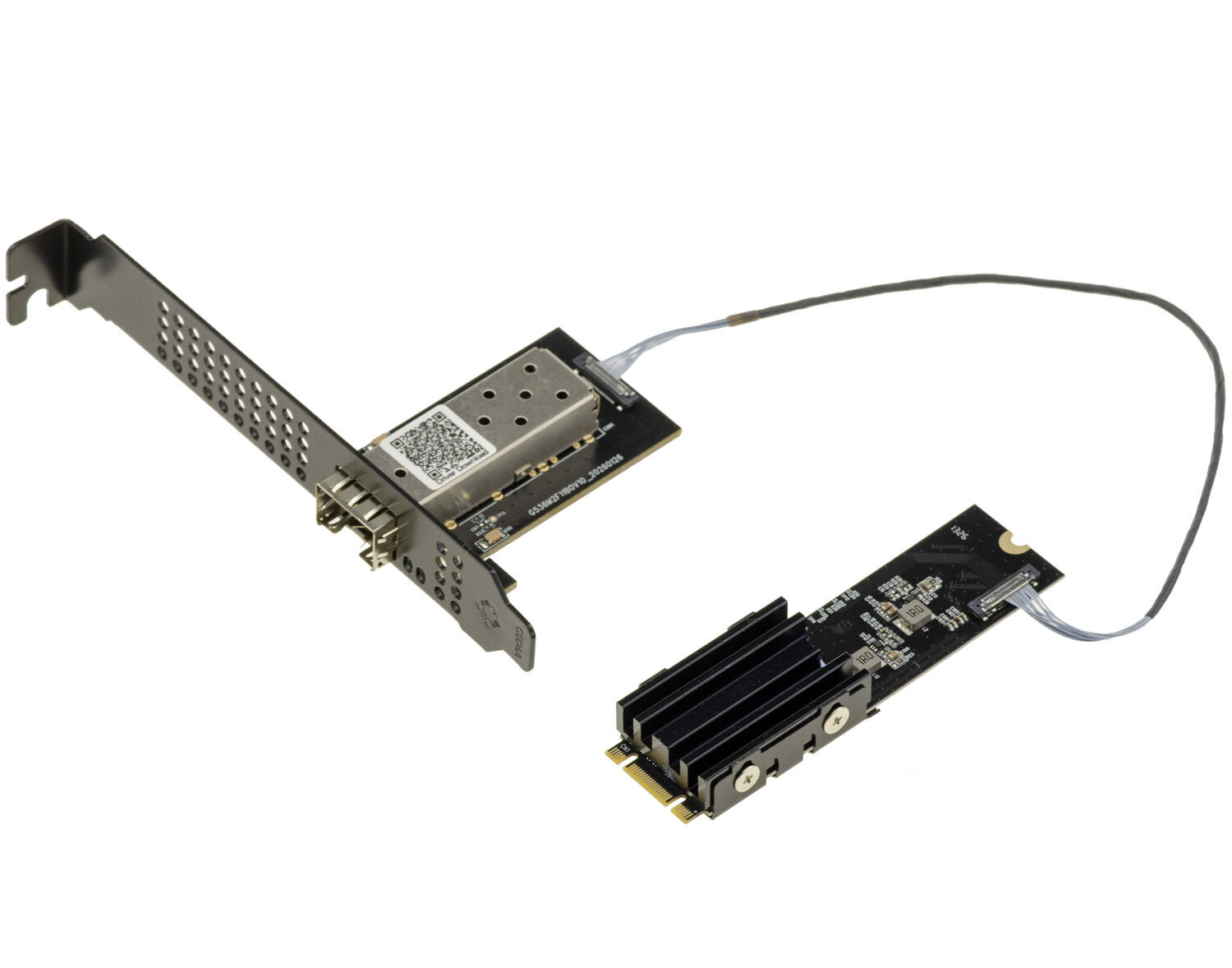

M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates

zoom

see also : M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates

non-contractual photo

M.2 B+M Key to SFP+ 10GbE Network Controller Card with Realtek RTL8127ATF Low-Power Chipset, Supporting 1G and 10G Data Rates

M.2 B+M Key to SFP+ 10G PCIe 3.0 x2 Network Card (RTL8127ATF)

Ref. Carte M2 10G SFP+ RTL8127
KALEA-INFORMATIQUE
3760306799493
New 81.58 € Not including tax 97.90 € Including tax

In stock

quantity

Back in stock notification
Receive an alert by email when your choice is in stock
Your e-mail*:
Close

Send this page to a friend

Product Details

This card allows you to add a 10 Gbps SFP+ fiber Ethernet interface to a system equipped with a PCIe-compatible M.2 slot.

Based on the low-power Realtek RTL8127ATF controller, this card is particularly well-suited for compact systems where heat dissipation is a constraint.



Compatibility:

PCI Express-compatible M.2 B+M Key host interface.

PCI Express 3.0 x2 PCIe link.

PCIe bandwidth per lane up to 8.0 GT/s.

Supports Windows 10, Windows 11, Linux 2.4.x, and later versions.



Technical Specifications:

Realtek RTL8127ATF chipset.

PCIe 3.0 x2 M.2 B+M Key host interface.

1 network port with SFP+ connector.

Supported Ethernet speeds: 1 Gbps / 10 Gbps (1000BASE-X / 10GBASE-R protocols).

Supported standards: IEEE 802.3, IEEE 802.3z, IEEE 802.3ae, and IEEE 802.3x.

Auto-negotiation supported; full-duplex mode supported at all speeds.

IEEE 802.3x flow control.

Jumbo frames up to 16KB.

Supports Wake-on-LAN, PXE, and EFI network boot.

Compatible with IEEE 802.1Q VLANs and IEEE 802.1ad Q-in-Q.

Hardware checksum offload and segmentation offload.

Maximum power consumption of 1.79W in 10GBASE-R mode.

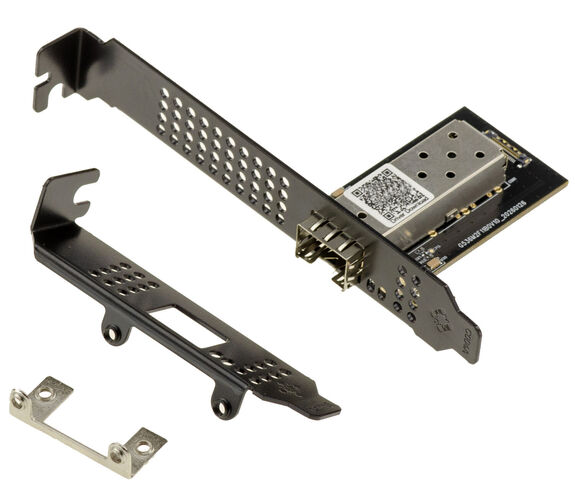

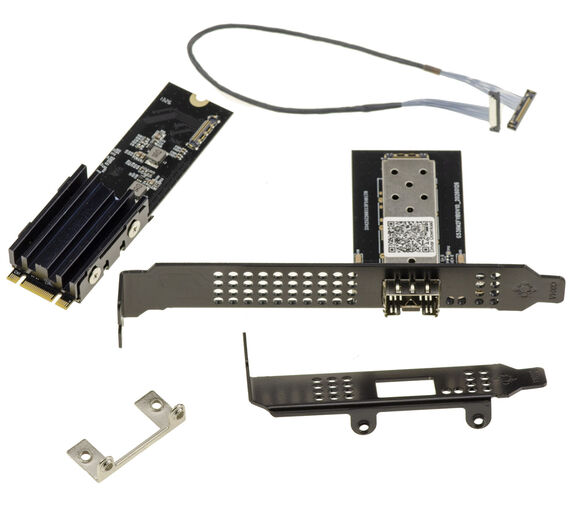

Comes with 3 mounting brackets (low profile, high profile, compact).
