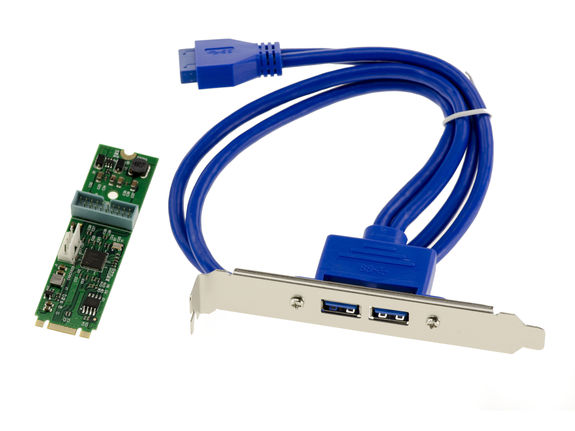

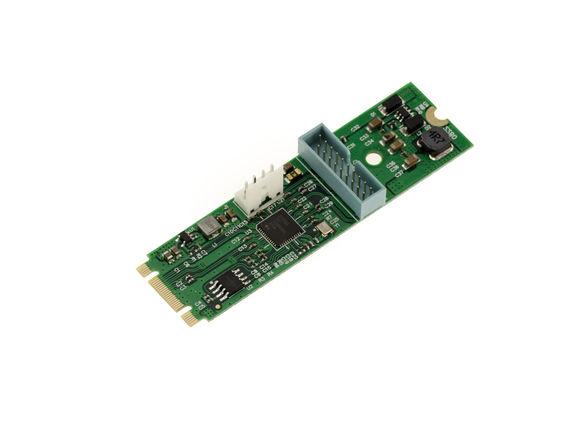

M.2 (M2 NGFF) Controller Board Type PCIe M or B+M Key - 2 USB 3.0 port per 19 Points Internal connector. NEC Renesas D720202 CHIPSET

This product is an ideal choice for M.2 M-Key expansible embedded or micro system needing larger volume and higher speed data transfer connectivity with USB devices. Real world applications such as: Connect to external hard disk drive, fast Solid State Drive(SSD), optical driver, high definition video camera etc.

FEATURES:
-USB 3.0 Host Controller IC Chipset: NEC Renesas D720202
-M.2 PCIe Interface:Â Â
-4-Lane M.2 Interface Supports Communication Speed of 5Gbps and 10.0Gbps
-Compliant with PCI Express Base Specification 3.0
-Supports PCI-bus Power management Interface Specification Revision 1.2
-20pin USB 3.0 Interface Header
-Compliant with Universal Serial Bus 3.0 Specification Revision 1.0Â Â
-USB 3.0 Super-speed (5Gbps)
-USB 2.0 High-speed (480Mbps)
-Full-speed (12Mbps)
-Low-speed (1.5Mbps)
-Supports All USB Compliant Data Transfer Types: Control / Bulk / Interrupt / Isochronous
-Supports All USB Compliant Peripherals
-Full Support of Real Time Dynamic Insertion and Removal of USB Devices
-Internal floppy 4pin Power Connector for Supplying +5V Power to the USB Ports
-Support Windows 2008,XP,Vista, Windows 7, Windows 8/8.1, Windows 10 32/64-bit
-Dimensions: 20x80 mms
