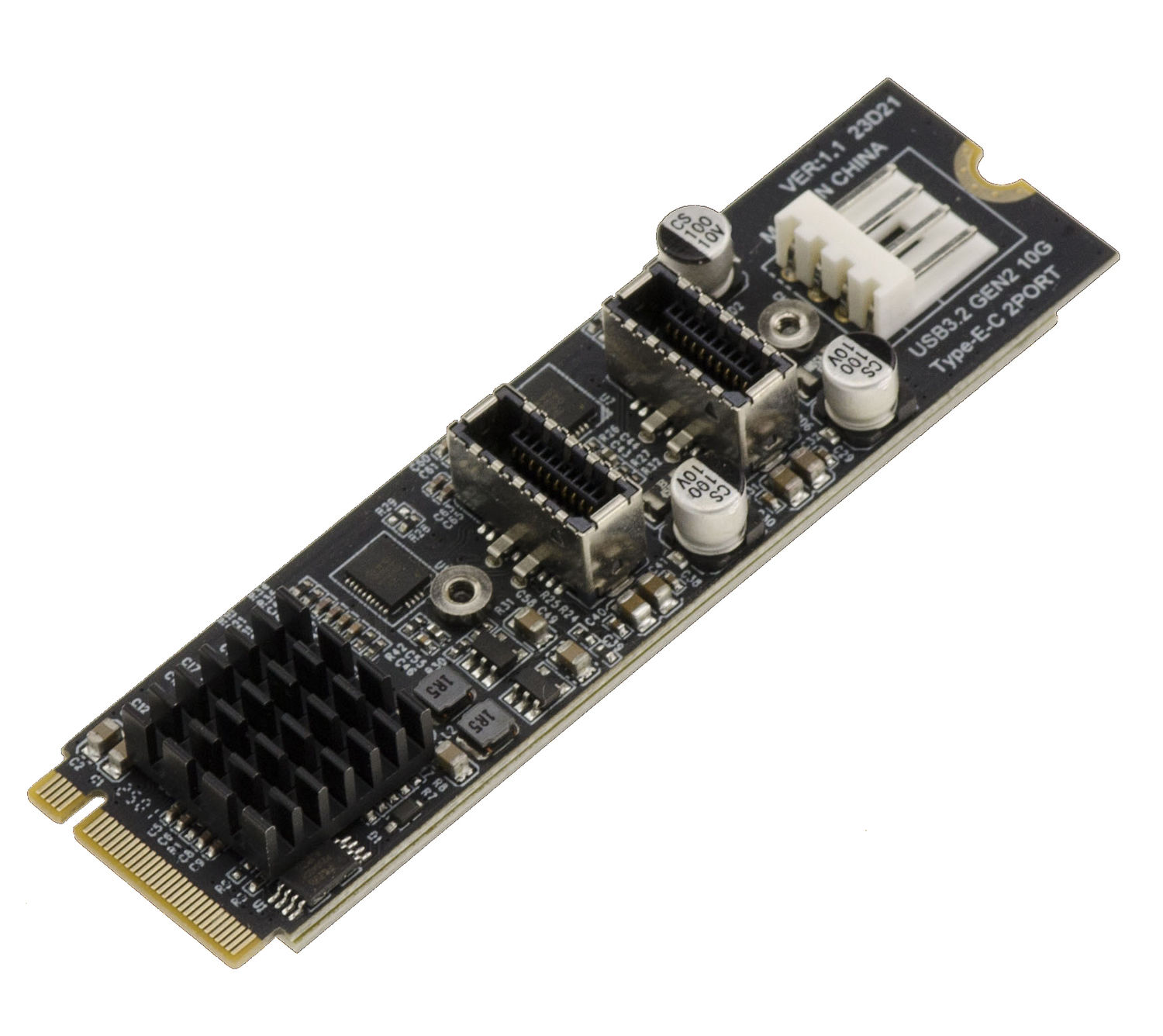

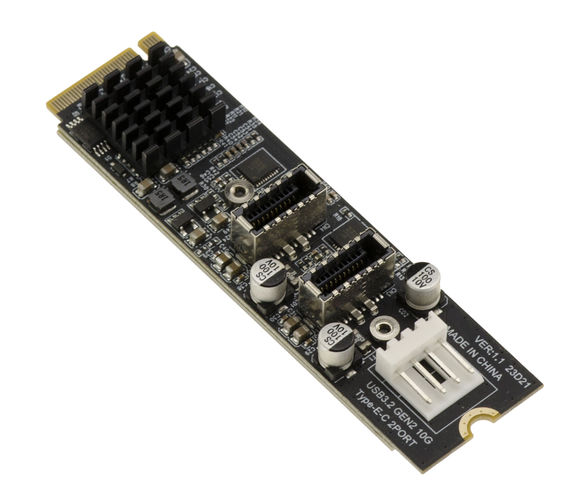

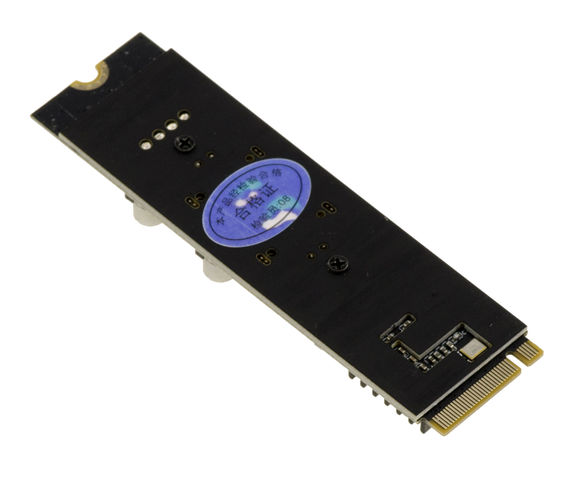

M2 PCIe M Key card with 2 USB3.2 Gen 2x1 10G Type E ports and ASM3142 chipset

Can be installed on the M.2 port of laptops (M or B+M), PCIe type (not suitable for SATA type M2 ports).

Compatibility:

Windows 8, 8.1, 10, 11 (automatic installation without driver), Linux 2.6.31 and above.

M2 card in 2280 format, suitable for 2280 and 22110 slots.

Specifications:

ASMEDIA ASM3142 CHIPSET.

Compatible with Universal Serial Bus 3.1 Specification Revision 1.0.

Compatible with Universal Serial Bus Specification Revision 2.0.

Compatible with USB Attached SCSI Protocol Revision 1.0.

The card has two E-type ports on the PCB.

Supports Multiple INs function.

Supports USB3.1 and USB2.0 Link power management.

10G throughput in USB 3.2 Gen 2x1, compatible with 5G/480/12/1.5 Mbps.

Supports Control, Bulk, Stream, Interrupt, and Isochronous transfer types.

Independent port power control.

Overcurrent detection.

Remote/Wakeup support.

Integrated Spread Spectrum controller for USB3.1 interface.

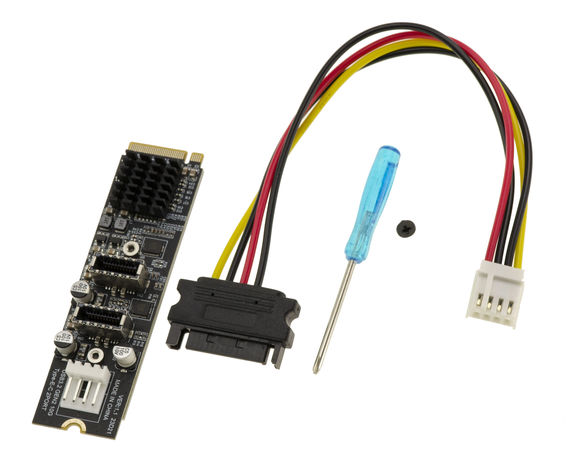

Power recovery via floppy connector (floppy/SATA cable included).
