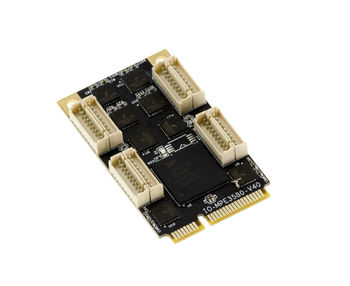

MINI PCI-E To 8-Port RS232 Card - EXAR XR 17V358

FEATURES
CHIPSET : EXAR XR 17V358
PCIe 2.0 Gen 1 compliant
x1 Link, dual simplex, 2.5 Gbps in each direction
15 KV ESD protection for all serial ports
Sleep mode with wake-up Indicator
Transmission media: twisted-pair cable or shielded cable
Direction control: Adopt the technology which automatically controls the data-flow direction、automatically distinguish and control the data-transmission direction;
Eight independent UART channels controlled with
16550 compatible register Set
256-byte TX and RX FIFOs
Programmable TX and RX Trigger Levels
TX/RX FIFO Level Counters
Fractional baud rate generator
Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
Automatic Xon/Xoff software flow control
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Extended operating temperature range;  -40 to 85⁰C

System Requirements
Windows OS
Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer
A available mini PCI Express slot
