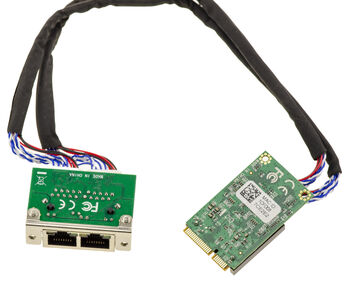

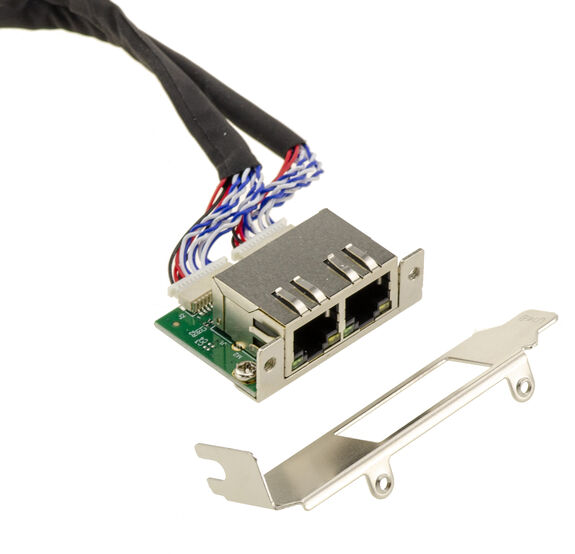

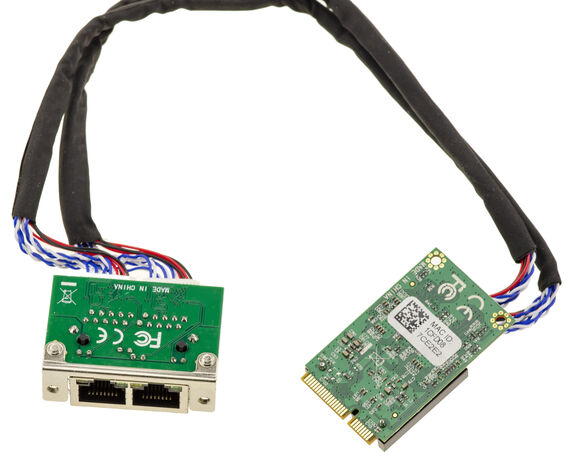

Mini PCI Express MiniPCIE network controller card 2 RJ45 dual LAN 2.5 GIGABIT ETHERNET copper ports with Intel I226 SRKTV chipset

For laptop (or mini PC) MiniPCIe port. Compatible with all MAXI 2.5 Gigabit networks.
COMPATIBLE 10M 100M 1G 2.5G.

Compatibility:
Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC.

Features:
Intel I226 chipset (SRKTV)
For MiniPCIe PCI Express 2.1, compatible Mini Card Electromechanical specification revision 1.2.
Card Format full size.
Ethernet interface: 2 IEEE802.3 standard MDI (copper) ports up to 2.5 Gb/s.
MDI-compliant IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications ( IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3 ).
Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames.
Automatic crossover detection function (MDI/MDI-X).
IEEE 1588 protocol and 802.1AS implementation.
Support for time-sensitive networking (TSN) capabilities.
Support for IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support.
TCP/UDP, IPv4 checksum offloads (Rx/Tx).
Transmission segmentation offload (TSO) (IPv4, IPv6).
Support for packets up to 9.5 Kb Jumbo Frames.

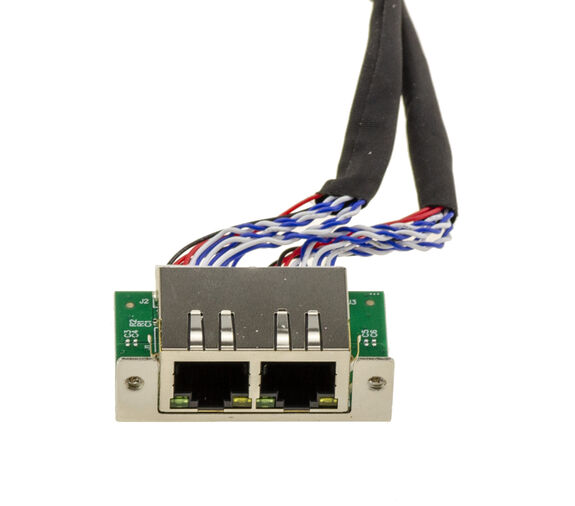

Cord length between mPCIe card and dual RJ45 card: 30cm.
