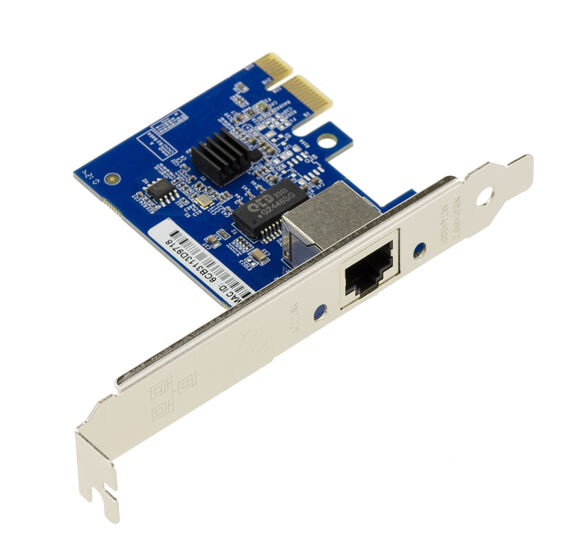

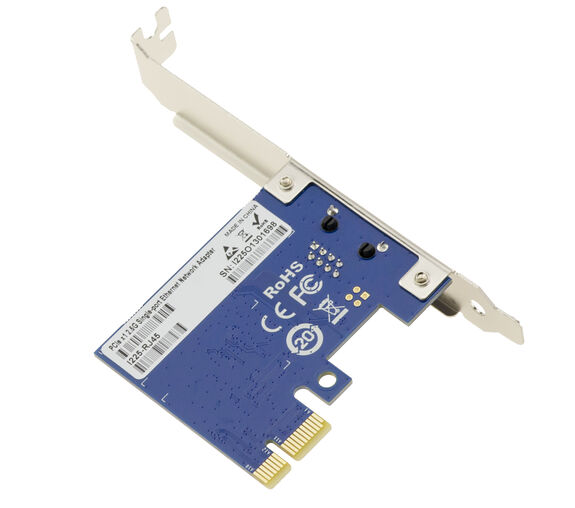

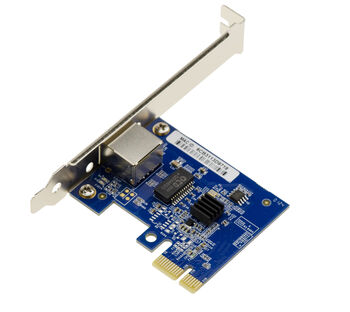

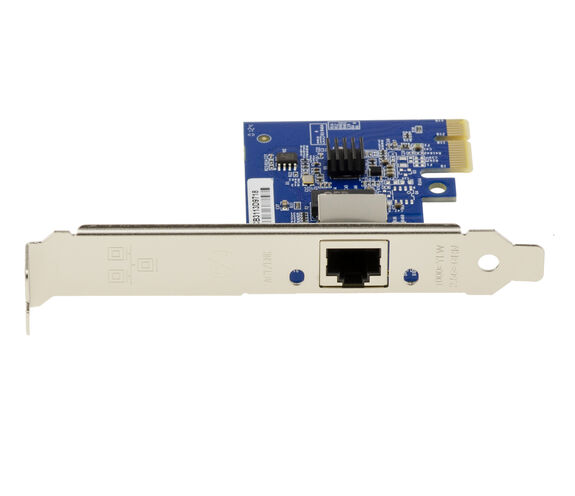

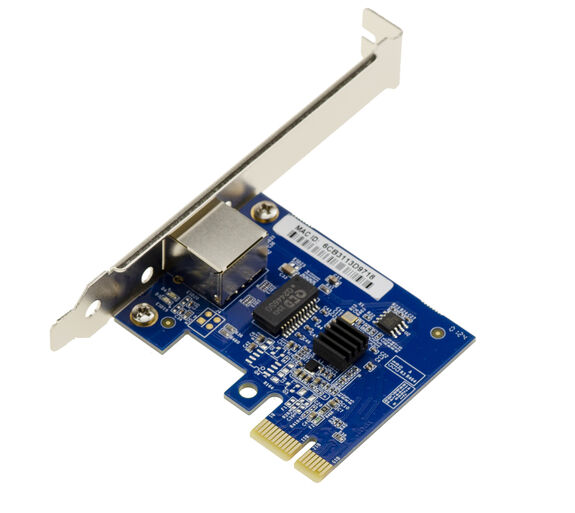

PCIe 2.5 Gigabit ETHERNET 10/100/ 1000 (1G)/ 2.5G controller board. RJ45 connector. Intel I225-V CHIPSET

PCI-E I225 2.5G Ethernet server network card, using high-performance I225-V Ethernet controller.
I225-V controller has a Base-T copper network interface, which can provide a compact single-port integrated multi-gigabit (up to 2.5G)-MDI (copper cable) standard for 2500BASE-T, 1000BASE-T, and 100BASE-TX IEEE802.3 Ethernet interface, 10BASE-TE connection.
It can also support vPro technology on specific platforms.

Specifications:
Compliant with PCI Express specification revision 3.1 (5.0GT/s);
MDI (copper) standard IEEE802.3 Ethernet interface, up to 2.5Gb/s;
Compliant with single port 1GbE RJ45 port (copper cable);
Compliant with MDI standard IEEE802.3 Ethernet interface (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3) for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications
IEEE802.3 autonegotiator;
Compliant with IEEE802.3x and IEEE802.3z flow control support, with software controllable RX threshold and TX pause frame;
Automatic cross detection function (MDI / MDI-X);
IEEE 1588 protocol and 802.1AS implementation

Support time sensitive network (TSN) function;
Support IEEE802.3az Energy Efficient Ethernet (EEE) full wake on LAN;Support TCP / UDP, IPv4 checksum offloading (Rx / Tx) transmission segment offloading (TSO) (IPv4, IPv6);Supports data packets up to 9.5KB jumbo frame

technical parameter
Applicable network: multi-gigabit server network card
Main controller: (R) I225-V
Bus type: PCI Express X1, 2.5GT/s
Media interface: copper cable, RJ45
Transmission rate: 2.5G/1000/100Mbps
Network topology: 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE, IEEE 802.3bz, IEEE 802.3, IEEE 802.3x, IEEE1588, IEEE 802.3az,-Energy Efficient Ethernet (EEE)
Management function: IPMI transfer via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
Operating system: FreeBSD, Linux, VMWare ESXi, Win 7/ Server 2012/ Server 2008/ Win 8/Win 8.1/Server 2016/Win 10
