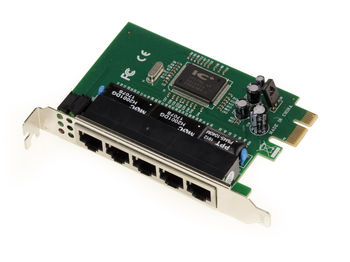

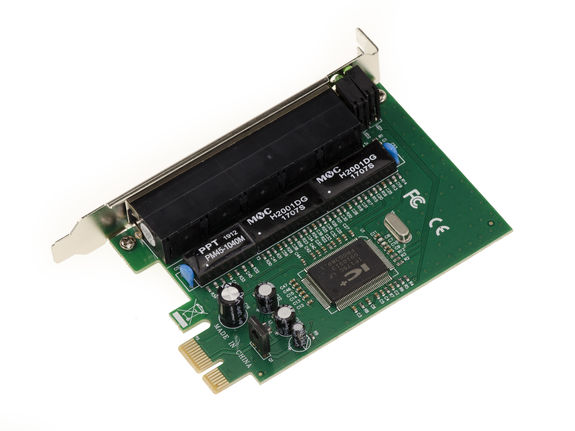

PCIe Switch ETHERNET with IC Plus chipset IP175-5 Ports

SE-LRI175C-5BT IC Plus IP175C integrates a 6-terminal switch controller, SSRAM and 5 10/100M Ethernet transceivers.
Each transceiver complies with IEEE802.3, IEEE802.3u and IEEE802.3x specifications.
Using 0.16um technology to design transceivers using DSP methods, they have high noise immunity and powerful performance.
Built-in linear regulator control circuit
Built-in 6 MAC and 5 PHY, Each port can be configured as 10Base-T, 100Base-TX, 2K MAC address, Support 10Mbps automatic polarity

Maximum data packet length 1552/1536 bytes
Bus type: PCI Express x1
Transmission medium: 5 x RJ45 port
colour: black
Material: PCB
size: 72x104x10mm

Package Contents:
1 x Ethernet integrated switch
