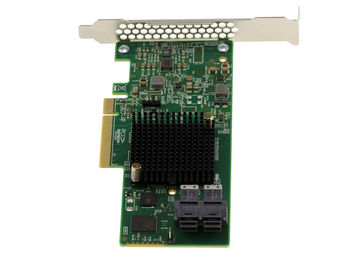

PCIe 3.0 SAS + SATA Controller Board - 12GB - 8 INTERNAL PORTS - OEM 9300-8i

Specifications:

I/O Controller : SAS 3008 Fusion MPT 2.5
Port Count : 8 port, internal
Connectors : Mini SAS HD SFF8643 Two (x4)
Storage Connectivity Data Transfer Rates : 12Gb/s SAS 3.0 Compliant
SAS Bandwidth : Half Duplex (x8 wide bus) 9600 MB/s
Port Configurations : 8 ea, x1 ports (individual drives), 2 ea, x4 wide port
Host Bus : x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates : Half Duplex x8, PCIe 3.0, 8000 MB/s
Form Factor : Low Profile
Physical Dimensions : 2.6” x 6.0”
Brackets : Full Height and low profile vented
Cable Support : Passive Copper
LED Management : Reference SFF-8485 (SGPIO) compliant
Operating Voltage : +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal) : 13W
Device Support : 1024 Non-RAID devices
Environmental : Operating: 0°C to 55°C
Storage: -45°C to 105°C
5 to 90% Non-condensing
Airflow: 200 LFM
MTBF : >2,800,000 hours

Regulatory Certifications : EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE

OS Support : Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See
