PCIe 3.0 x8 controller card for 2 M.2 NVMe M Key SSDs HARWARE RAID 0 1, JBOD with removable HOTPLUG RACKS
RAID controller card for 2 M.2 SSDs with removable racks
Product Details
This card allows you to control two M.2 PCIe M Key (or B+M Key) SSDs independently or in a RAID cluster.
This version allows SSDs to be mounted on hot-swappable racks.
For all M.2 “M Key” PCIe SSDs (NVMe or AHCI) only, does not support SATA M2 SSDs.
Specifications:
For PCIe 3.0 or higher in x8 (compatible with x8 and x16).
PCIe x8 card with 2 M.2 4x ports.

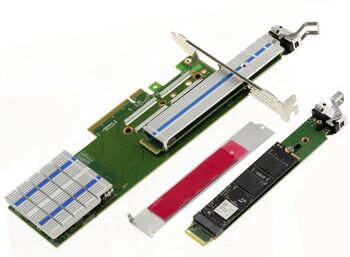

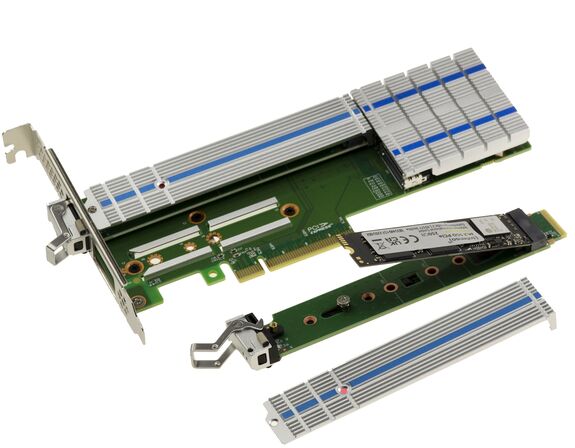

Each M2 SSD is mounted on an independent rack with a heat sink and can be hot-swapped from the rear of the card.
Integrated TRIM & S.M.A.R.T. control with TBW monitoring.
For use on motherboards with PCIe type 3.0 or higher only.
Compliant with PCI Express M.2 1.0 specification.
Supports data transfer speeds of up to 2.5Gb/s, 5Gb/s, 8Gb/s.
Compatible with 2230, 2242, 2260, 2280, and 22110 formats.
MARVELL 88NR2241B0 RAID CHIPSET.
Supports hardware RAID 0, 1, and JBOD.
Easy installation and no drivers required (UEFI and NVMe compatible BIOS required).
Compatible with Mac, Windows, and Linux (if NVMe is supported by the OS).
The chipset cooling device is independent of the SSD cooling device.
|
