SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards

zoom

see also : SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards

non-contractual photo

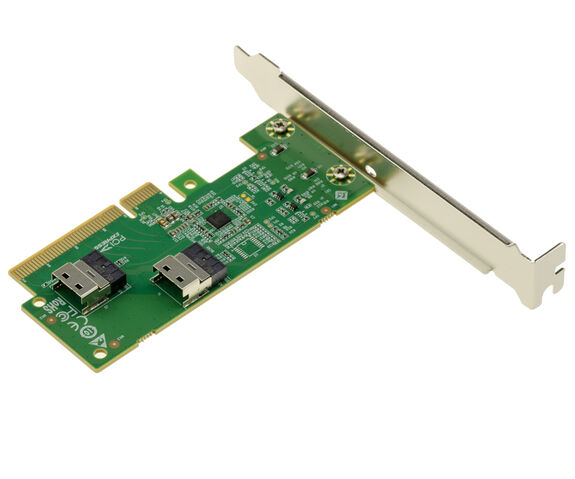

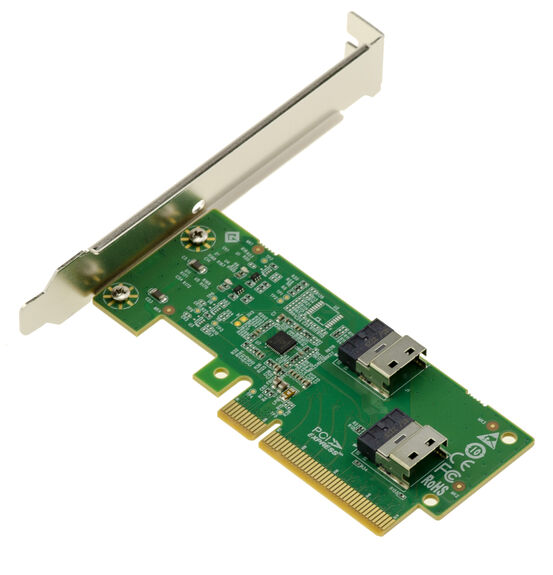

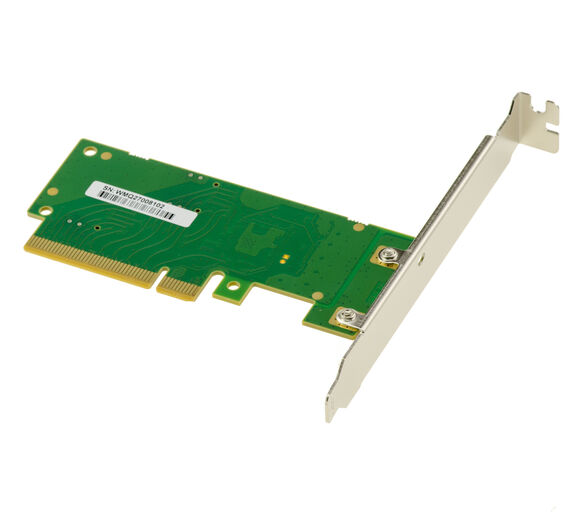

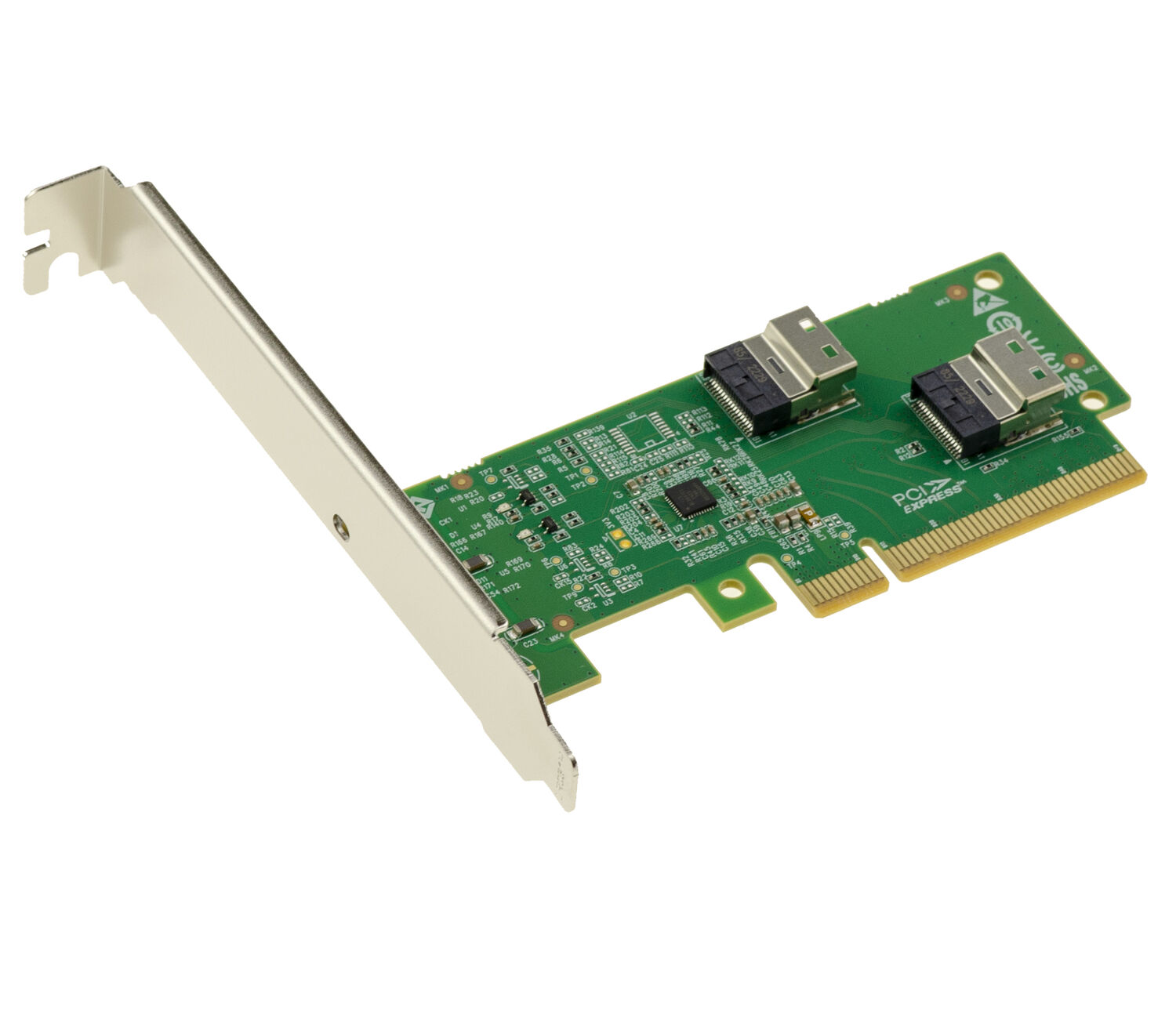

SFF-8654 4i PCIe 4.0 to 2-Port Slim SAS Adapter Controller Card for NVMe M.2, M.3, U.2, and U.3 SSDs or PCIe Add-on Cards

PCIe 4.0 x8 to 2-Port SlimSAS SFF-8654 4i Card for NVMe SSDs or PCIe Adapters

Ref. Carte PCIe 4.0 2x SFF8654-4i
KALEA-INFORMATIQUE
3760306799509
New 46.58 € Not including tax 55.90 € Including tax

In stock

quantity

Back in stock notification
Receive an alert by email when your choice is in stock
Your e-mail*:
Close

Send this page to a friend

Product Details

This card splits a PCIe x8 port into two x4 ports via two independent SlimSAS SFF-8654 4i interfaces, allowing you to connect up to two NVMe SSDs or PCIe add-in cards.



Compatibility:

PCI Express x8 host interface for x8 or x16 ports.

PCIe generation designed for PCIe 4.0 operation.

Transparent operation with major systems that natively support PCIe NVMe devices.



Technical Specifications:

PCIe Gen 4 x8 card.

2 internal 36-pin SlimSAS SFF-8654 4i connectors.

Link width per PCIe x4 connector.

Maximum number of devices: 2 NVMe SSDs.

Ability to directly connect a U2 SSD using an SFF8654-4i to SFF-8639 cable.

Allows splitting a PCIe x8 interface into two independent PCIe x4 links.

Direct connection from the PCIe bus to connected NVMe devices.

Dimensions: 146.5 x 67.5 mm; weight: 72 g.

Operating temperature: 0°C to 70°C.

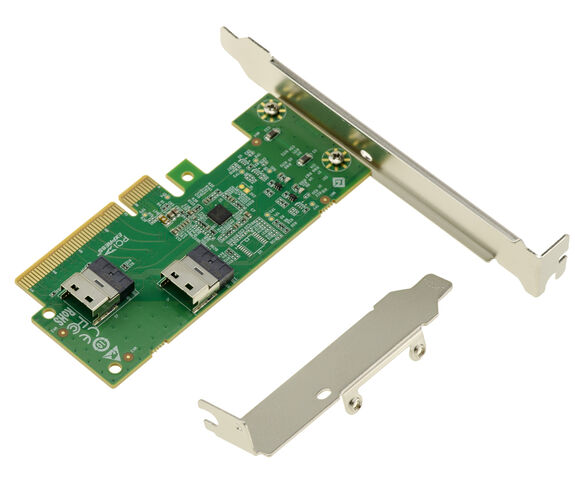

Low- and high-profile mounting brackets included.
