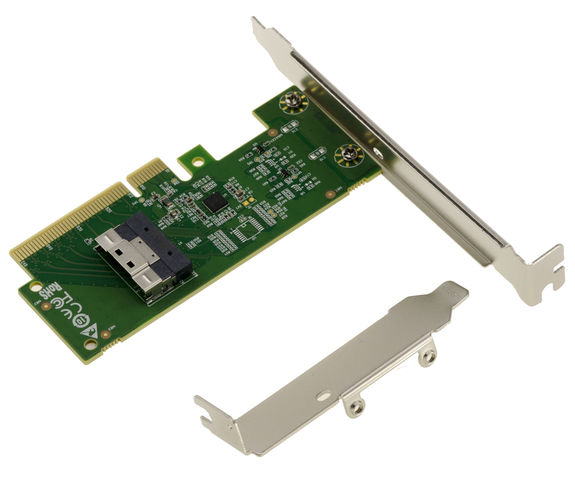

PCIe 4.0 to Slim SAS SFF-8654 8i adapter controller card for NVMe M2 M3 U2 U3 SSD or PCIe adapter plate

High-performance, low-dielectric-loss interface conversion card. For NVMe SSDs or PCIe connectors via a 74-pin SlimSAS (SFF-8654) connector. Supports up to 2 PCIe or NVMe SSD devices.

Compatibility:

The adapter does not require a driver to operate or communicate with the connected NVMe drives. The disks are presented natively to the host and use the native NVMe drivers.
Compatible with Windows, Mac, Linux, DOS....

Specifications:

PCIe 4.0 x8 card.
Compatible with PCIe Gen4, Gen3, Gen2, Gen1.
The bandwidth of the card corresponds to the bandwidth that the PCIe slot of the motherboard can support.
One SlimSAS SFF-8654 connector (74 Pin, x8 PCIe Gen 4).
Supports up to 2 PCIe or NVMe SSD devices if the motherboard supports bifurcation mode (x8) to 2x (x4).
Support for a single NVMe or PCIe device if bifurcation mode is not supported.
Direct connection to NVMe U2 or U3 SSD via SlimSAS 8654 (8i) to SFF-8639 cable.
Operating temperature 5 to 50°C.
Dimensions 102mm x 45mm, weight 50g.
Card Supplied with high and low profile brackets.
