PCIe 4X Kit LAN Ports RJ45 Gigabit Ethernet 10 100 1000 Mbps for Lenovo Tiny5 M720Q M920Q M920X P330

Specific Kit designed for Small Cases of Lenovo M720Q M920X P330

Specification
Integrated 10/100/1000M transceiver
Supports Giga Lite (500M) mode
Auto-Negotiation with Next Page capability
Supports PCI Express 1.1 x4
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Supports 1-Lane 2.5Gbps PCI Express Bus
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Transmit/Receive on-chip buffer support
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Fully compliant with IEEE802.3, 802.3u and 802.3ab
Supports IEEE 802.1P layer 2 Priority Encoding
Supports 802.1Q VLAN tagging
Supports IEEE 802.3az-2010(EEE)
Supports Full Duplex flow control (IEEE.802.3x)
Supports jumbo frame to 9K bytes
Supports quad core Receive-Side Scaling(RSS)
Supports Protocol Offload(ARP&NS)
Supports Microsoft WPI (Wake Packet Indication)
Supports ECMA-393 ProxZzzy Standard for sleeping hosts

System Requirement
Windows 20000, ME, 98SE, Windows Server 2003/XP/Visit/ 2008/7 /8 /10 32-/64-bit,Linux, MAC OS 10.4 or above and DOS.

Package Content

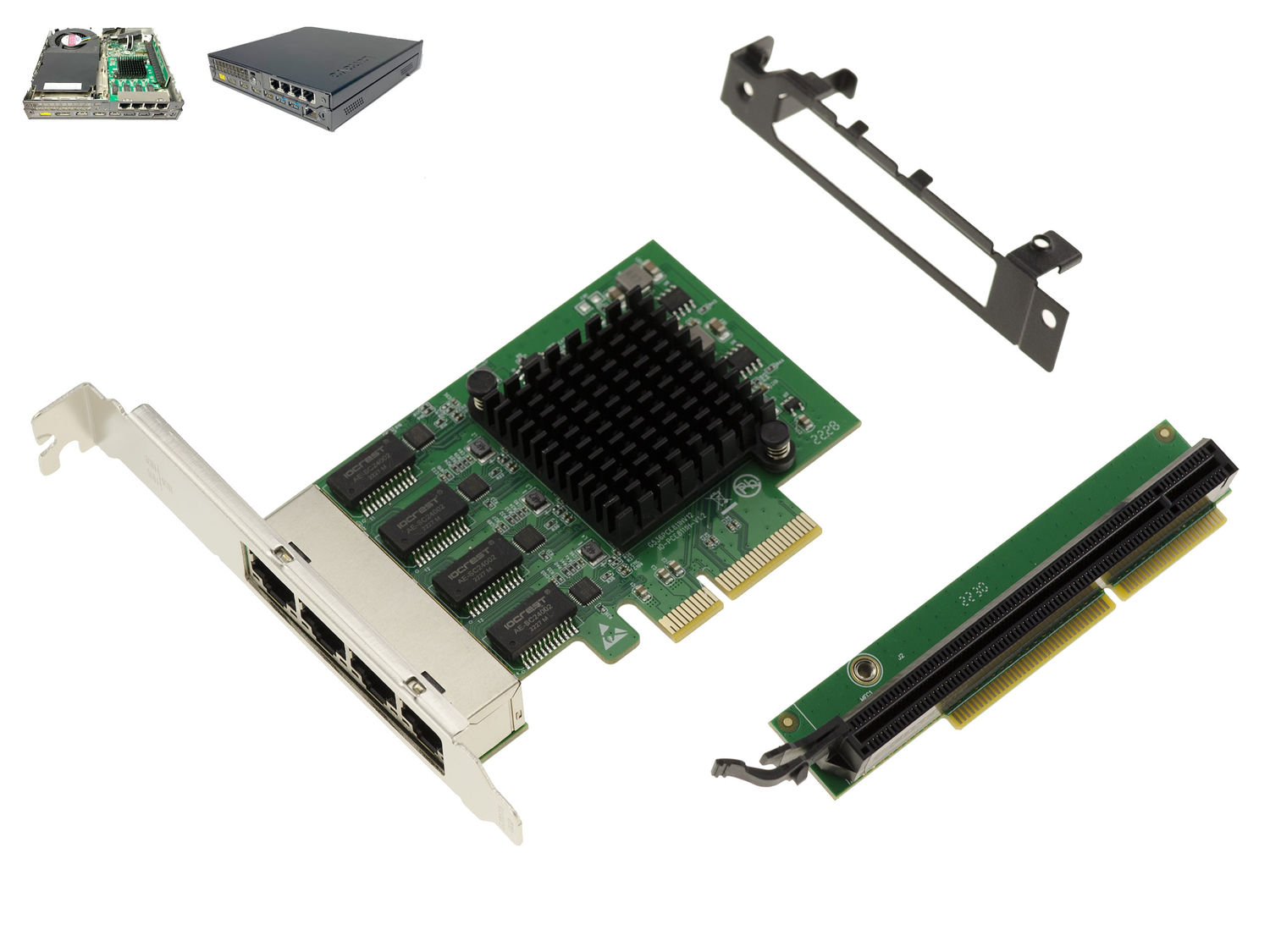

1 x PCI-Express Four Gigabit Ethernet controller card
1 x User Manual
1 x Specific Mounting Kit For Lenovo Small Case
