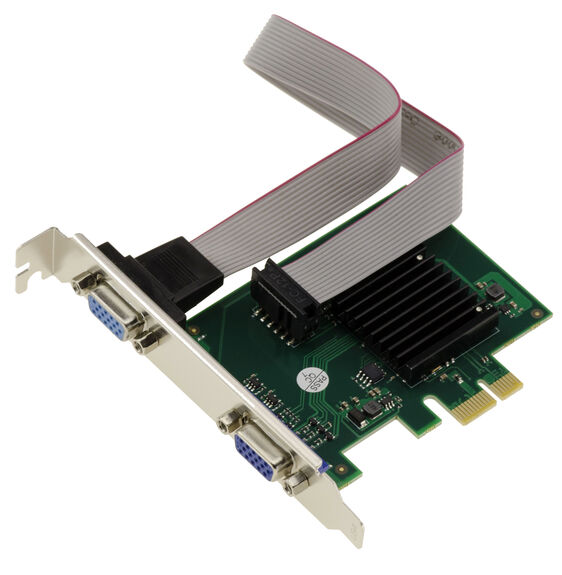

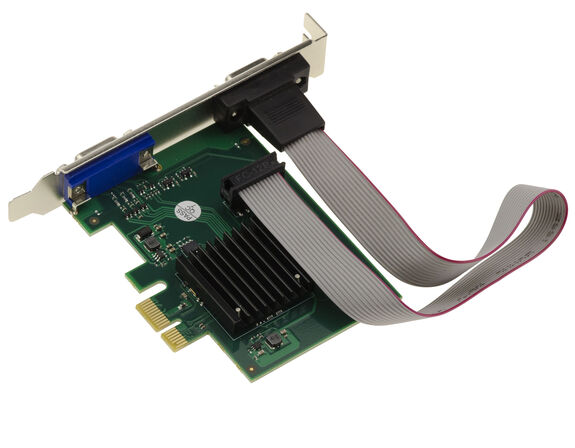

1080p dual-port VGA graphics card on PCIe x1 port with Silicon Motion SM750 chipset

Connects to a computer's PCIe port and allows you to add two VGA displays to duplicate or extend your display across monitors.

Compatibility:

Compatible with Windows 7, 8, 8.1, 10, 11, and Linux (Ubuntu, Fedora, RedHat, etc.).

Technical specifications:

Chipset: Silicon Motion SM750.

Dual 300 MHz DAC.

Integrated 16 MB DDR memory.

Display rotation possible at 90°, 180° and 270°.

128-bit 2D graphics engine: ROP3, BitBLT, transparent BLT, patterned BLT, color expansion, line drawing, YUV to 16/32-bit RGB conversion.

Supports 7 display layers: 2 hardware cursors, main graphics, video, alpha video, alpha, secondary graphics.

Compatible with ITU601 and ITU656 standards, V to 16/32-bit RGB conversion.

Features 2 DB15 VGA ports, maximum resolution up to 1080p or 1900x1200.

Intended use: office applications only (no 3D engine).

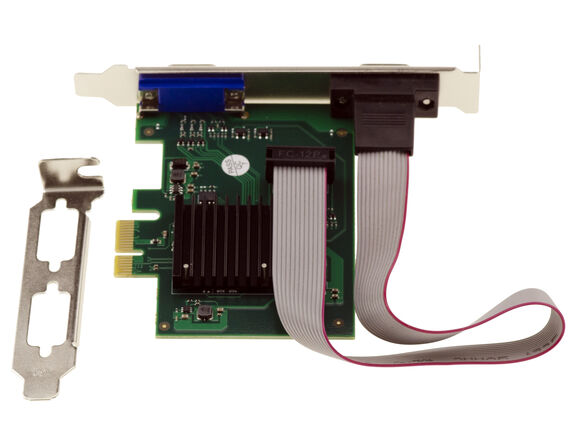

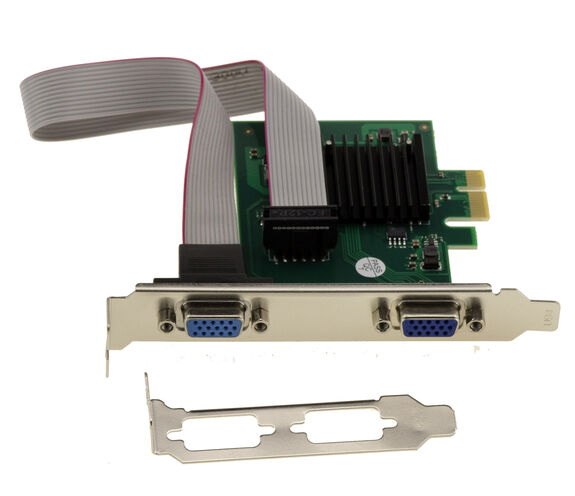

Comes with low profile and high profile brackets.
