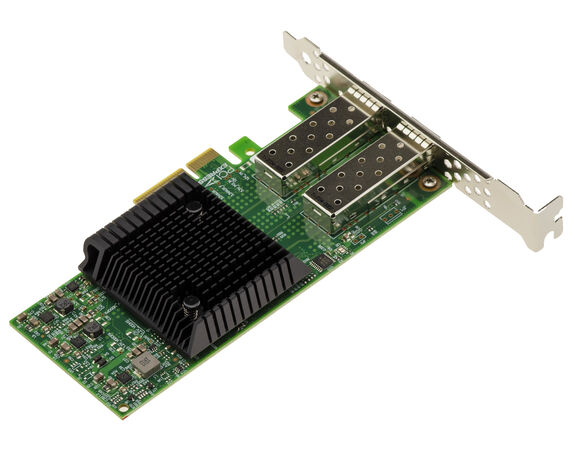

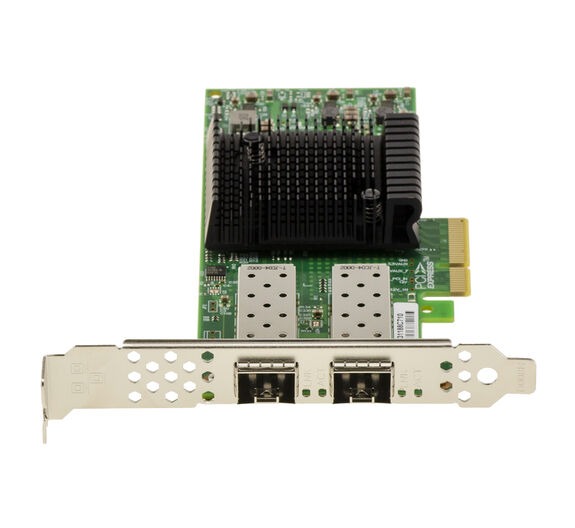

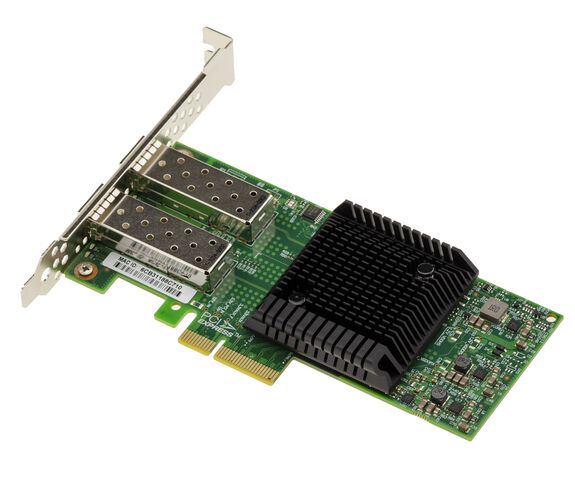

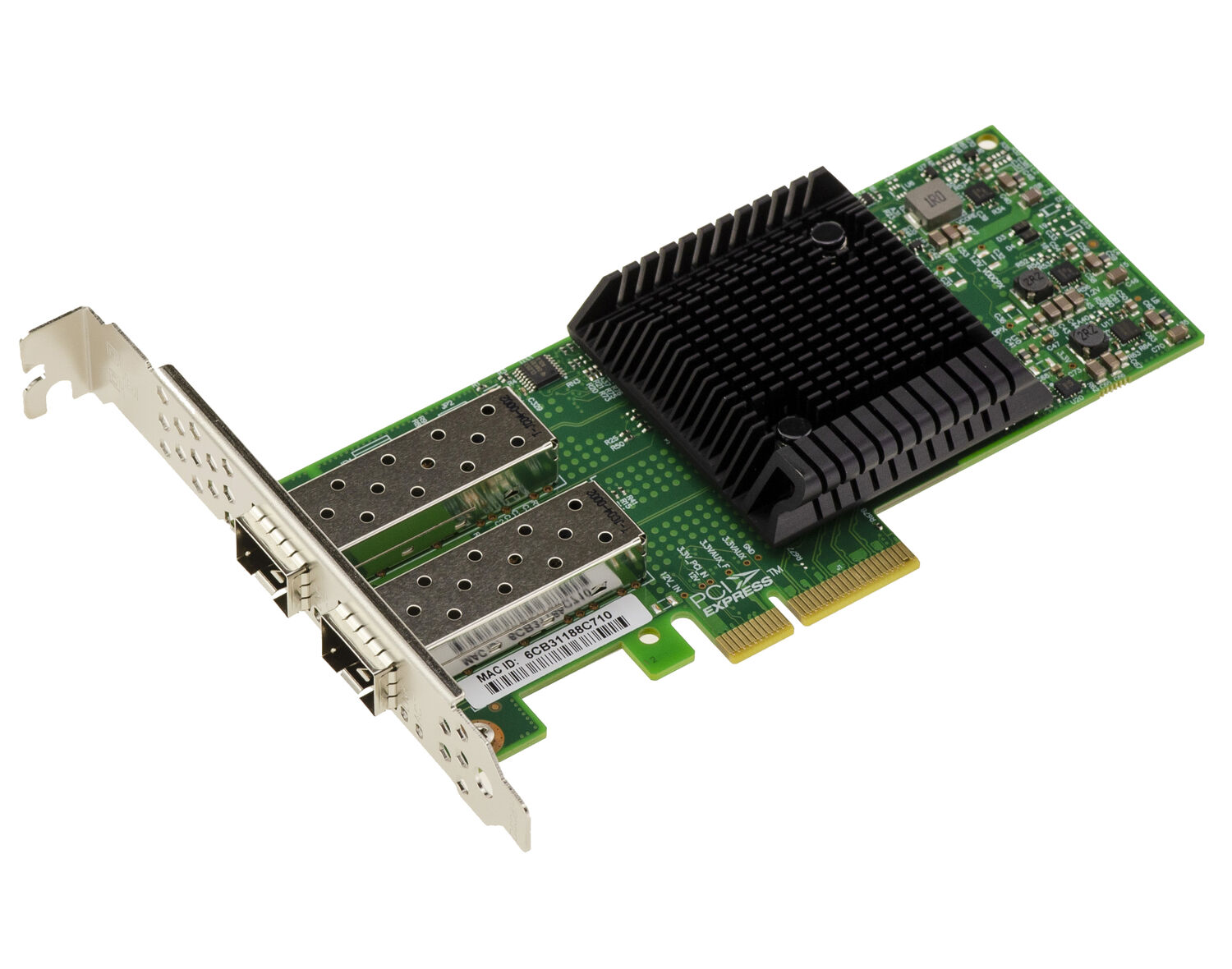

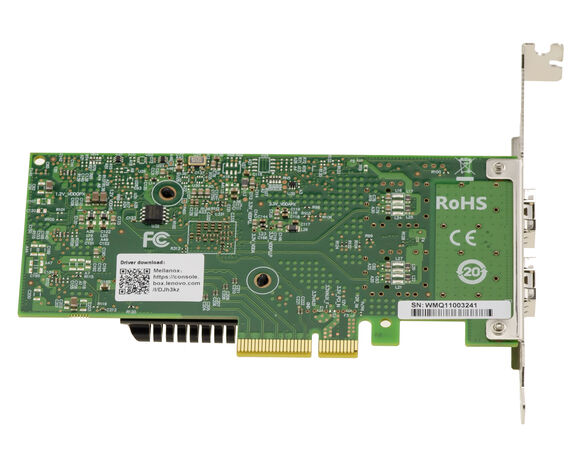

2-Port 10G SFP+ Fiber LAN PCIe x4 Network Controller Card with MELLANOX X-4 chipset, supporting RDMA, SR-IOV, and PXE

Dual-port 10 Gigabit Ethernet card in PCIe x4 format, based on the Mellanox ConnectX-4 controller.

It also incorporates advanced technologies such as RDMA, PXE, and SR-IOV, enabling optimized performance, virtualization, and resource management.

Compatibility:

Compatible with Windows, Windows Server, Ubuntu, Debian, RHEL/CentOS, SUSE, Rocky, FreeBSD, VMware ESXi, Mikrotik, OpenEuler, Kylin OS, UOS, Fusion OS, etc.

It supports major IEEE network standards (802.3, VLAN, QoS, etc.), ensuring seamless integration into most existing network architectures.

Technical Specifications:

Mellanox ConnectX-4 chipset.

PCIe Gen 3.0 x4 compatible with x4, x8, and x16 ports.

Two SFP+ ports with data rates up to 10 Gb/s per port.

Supports DAC connections as well as SR/LR optical modules.

Supported protocols: IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3az Energy Efficient, IEEE 802.3ap, IEEE 802.3ad, IEEE 802.1AX, IEEE 802.1Q, 802.1P VLAN, IEEE 802.1Qaz (ETS), IEEE 802.1Qbb (PFC), IEEE 802.1Qbg, IEEE 1588v2.

RDMA-compatible (direct memory-to-memory data transfer without CPU involvement).

SR-IOV compatible (virtualization into multiple independent network interfaces).

PXE / UEFI (system boot and deployment over the network).

End-to-end QoS for optimized network traffic management.

Jumbo Frames (up to 9.2 KB).

Power consumption between 5.9 W and 9.3 W depending on usage.

Activity LEDs.

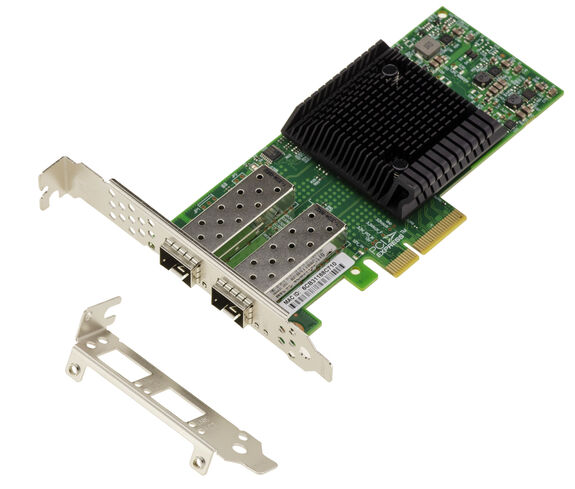

Supplied with low-profile and full-height mounting brackets,

Recommended operating temperature range between -10°C and 60°C.

Dimensions 142.3 x 68.7 x 10 mm
