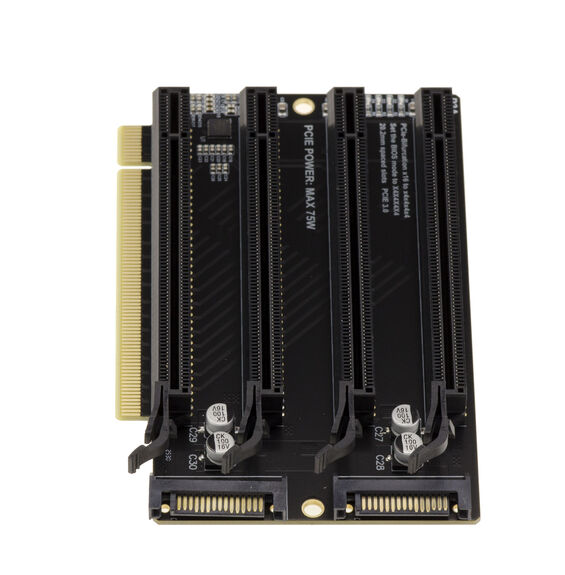

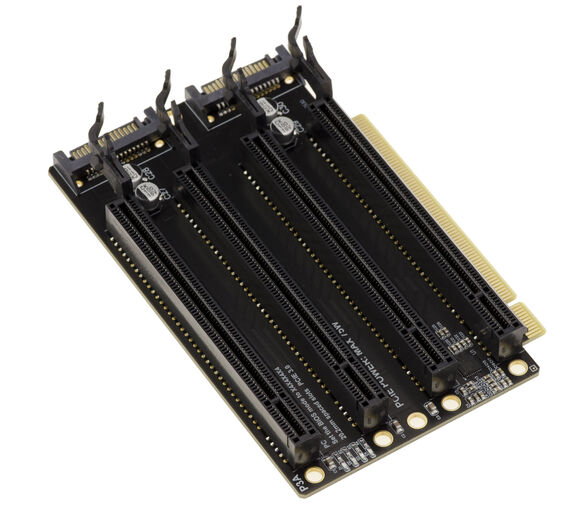

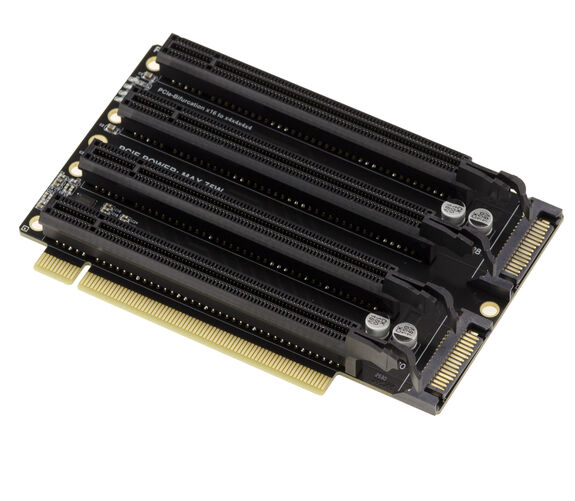

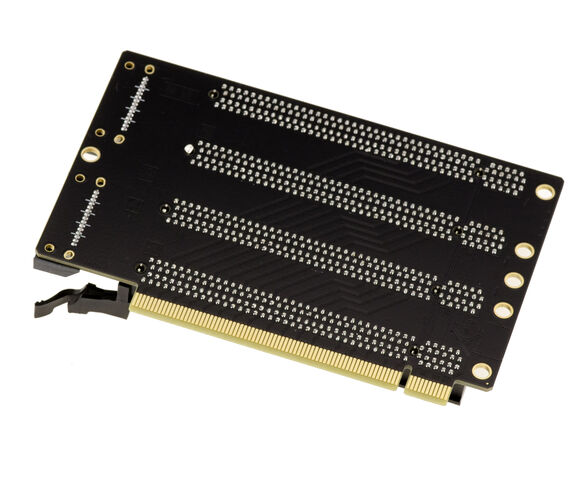

PCIe Gen 3.0 x16 to 4-Port x4 Splitter Adapter, 90° Orientation

zoom

see also : PCIe Gen 3.0 x16 to 4-Port x4 Splitter Adapter, 90° Orientation PCIe Gen 3.0 x16 to 4-Port x4 Splitter Adapter, 90° Orientation PCIe Gen 3.0 x16 to 4-Port x4 Splitter Adapter, 90° Orientation PCIe Gen 3.0 x16 to 4-Port x4 Splitter Adapter, 90° Orientation PCIe Gen 3.0 x16 to 4-Port x4 Splitter Adapter, 90° Orientation

non-contractual photo

Riser Gen 3.0 PCIe (x16) to 4x (x4), 16GB/s throughput

Ref. PCIe 3.0 Riser Split (x16) vers 4x (x4)
KALEA-INFORMATIQUE
3760306798571
New 41.58 € Not including tax 49.90 € Including tax

In stock

quantity

Back in stock notification
Receive an alert by email when your choice is in stock
Your e-mail*:
Close

Send this page to a friend

Product Details

For horizontal installation of one to four PCIe cards. The female ports are physically the size of x16 ports, but their bandwidth is x4.

Features:

PCIe Gen 3.0 riser, for use on a Gen 3.0 port.

If x16 to x4/x4/x4/x4 splitter mode is supported: allows four PCIe x4 cards to be connected horizontally.

If splitter mode is not supported: allows one PCIe x16 card to be connected horizontally.

PCIe Gen 3.0 x16 throughput of 16GB/s.

Power supply via two 15-pin SATA connectors, maximum supported power 75W.

Riser height excluding male PCIe connector: 72mm. Total height 80mm.

Spacing between female slots: 20mm (center of one slot to center of slot above).

Total length: 125mm.
