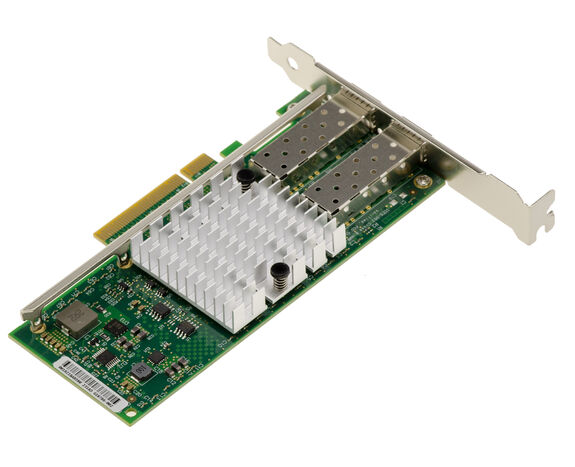

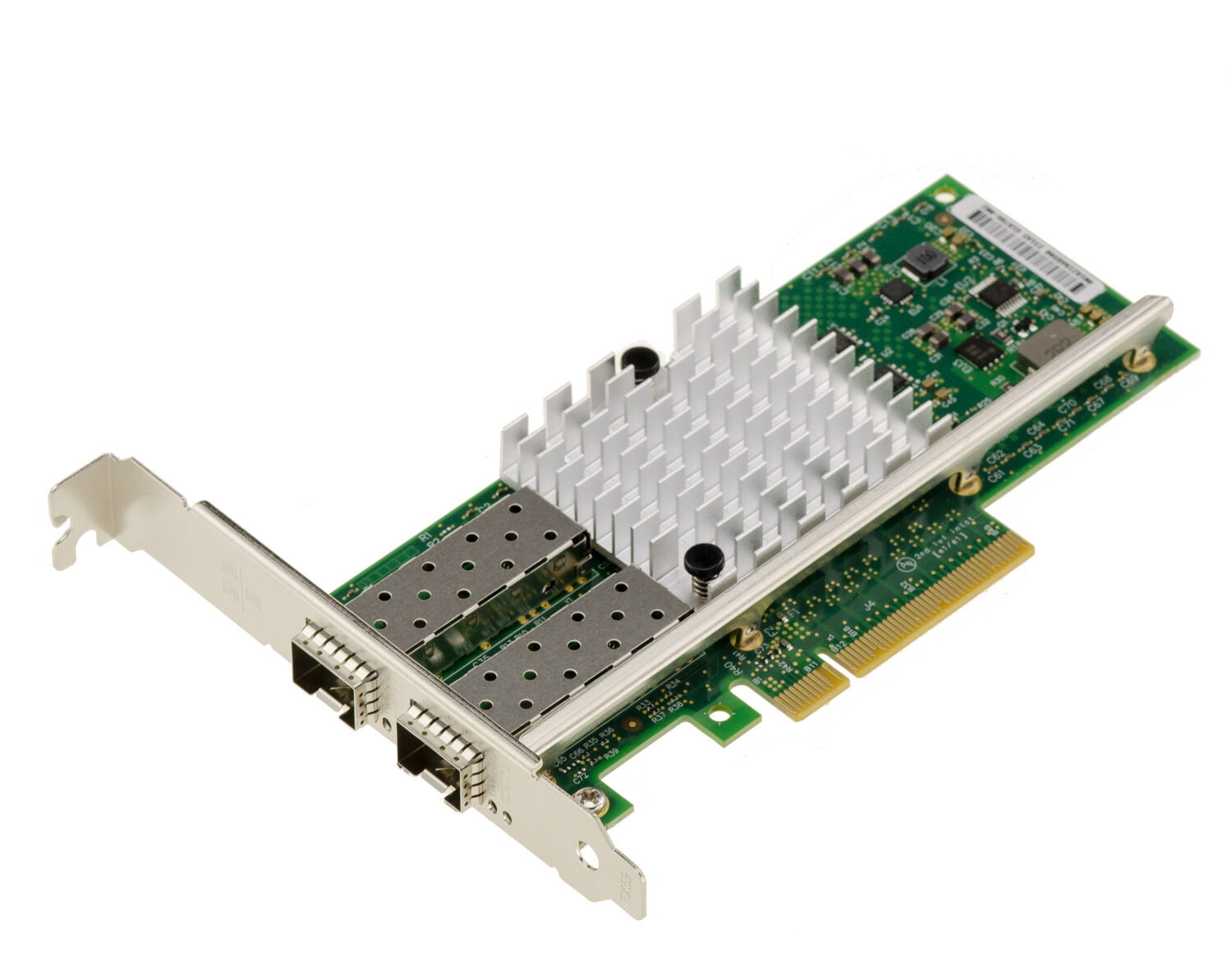

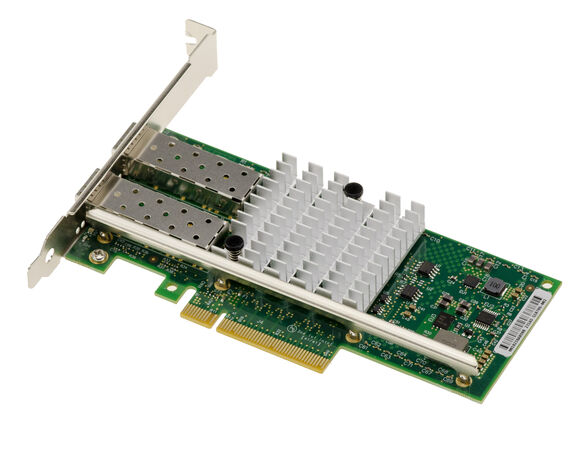

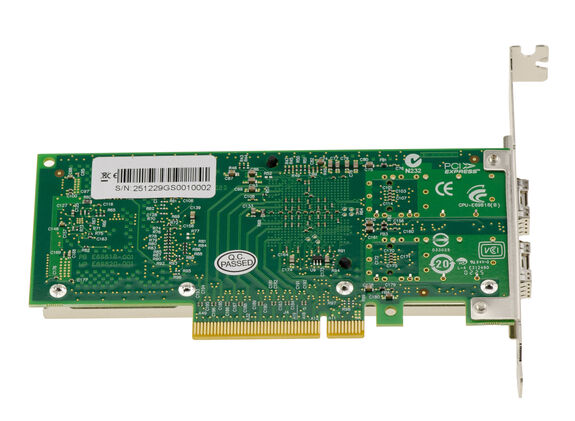

Intel 82599ES 10GbE PCIe x8 Network Controller Card with 2 SFP+ Ports (SR/LR/DAC) and Intel VT-c Virtualization, IPsec/LinkSec Support

This 10 Gigabit fiber network card is equipped with the Intel 82599ES controller and offers two SFP+ slots. It delivers high-speed performance for servers, virtualization solutions, and professional applications requiring low latency.

Compatibility:

For PCIe Gen 2.0 or higher ports in x8 or x16.

Windows 7/8/8.1/10/11,

Windows Server 2008 / 2012 / 2016 / 2019 / 2022,

Deepin, NeoKylin,

RHEL / CentOS 7.x / 8.x,

Ubuntu 16.04 / 18.04 / 20.04 / 22.04,

SUSE 12.5/15.4,

VMware ESXi 6.5/6.7/7.0,

FreeBSD 12.2/13.2,

Galaxy Unicorn v10,

ZTE New Fulcrum 3.2.2/5.0.5.

Features:

LC fiber optic connector (MMF 62.5/50 µm, 300m range).

Two SFP+ slots compatible with SFP+ SR, SFP+ LR modules and SFP+ DAC cables.

Speed per port 1 GbE / 10 GbE (optical), 10 GbE via DAC.

PCI Express 2.0 bus (5 GT/s), x8 width.

IEEE 802.3 network standards.

INTA, MSI, MSI-X interrupt types.

Intel VT-c virtualization support (VMDq, VMDc).

IPsec/LinkSec security.

Typical power consumption 10 W, maximum 10.7 W.

LEDs: activity (flashing), link (steady), speed (green).

Operating temperature 0°C to 55°C.

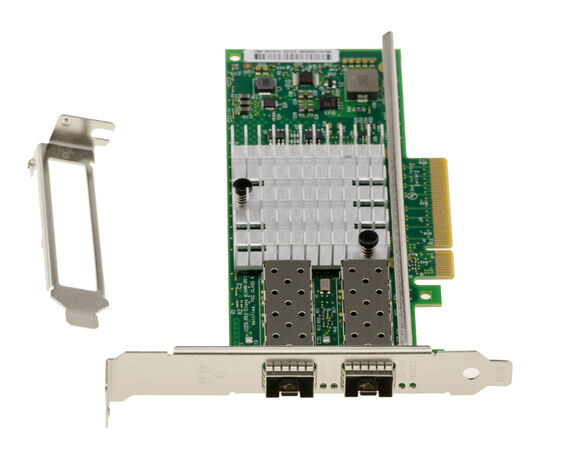

Card supplied with low and high profile brackets.
