INDUSTRIAL PCIe x4 network card with 4 RJ45 LAN GIGABIT ETHERNET 10 100 1000 ports with quad INTEL 82574 chipset and PLX PEX8608 20Gbps bridge
Industrial PCIe 4-Port RJ45 with PEX8608 bridge, 4 INTEL 82574 chipsets, 20Gbps bandwidth
Product Details

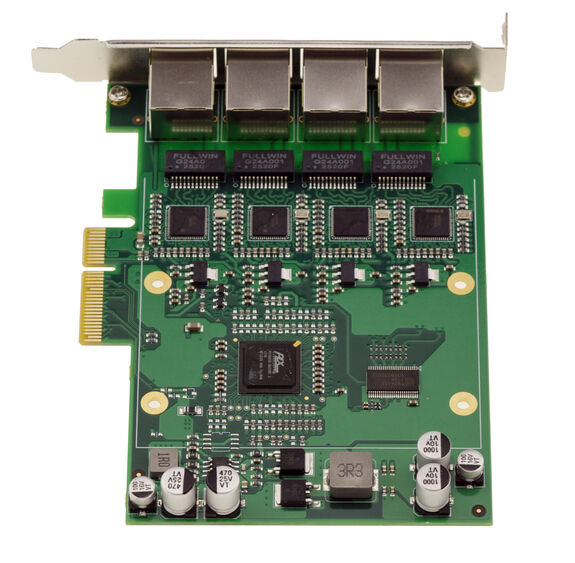

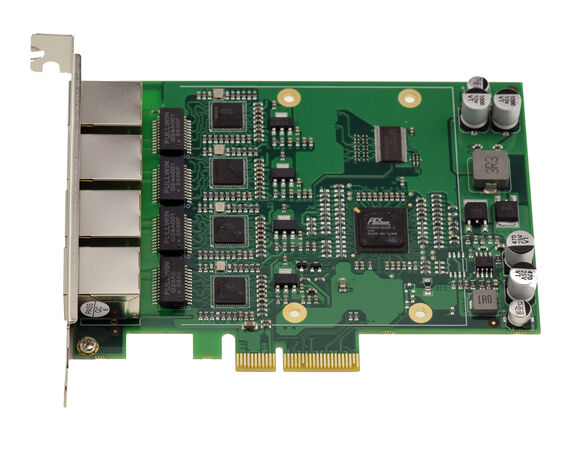

With its PCIe PLX bridge and four Intel I82574 controllers, this network card offers a total bandwidth of 20 Gbps. This means you get maximum gigabit throughput on each of the four ports, even when used simultaneously. This is our most powerful quad Gigabit card.
Equipped with four Intel I82574 chipsets
Compatibility:
Microsoft systems: Windows 7, 8, 8.1, 10; Server 2003, Enterprise, Datacenter (32/64-bit)
Linux: Red Hat 2.4x and later (32/64-bit)
FreeBSD: 4.x and later
Other OS: Novell Netware 5.x, 6.x; Sun Solaris x86 OS 8+; SCO Open Server 5; OpenUNIX 8
Technical specifications:
4 Intel I82574 chipsets for stable, high performance
PLX PEX8608 PCIe bridge providing 20 Gbps bandwidth
PCIe x4 Gen 2.0 interface (compatible with x4, x8, x16 slots)
Support for 10/100/1000 Mbps speeds with auto-negotiation
Automatic crossover cable detection
Supports full duplex mode with flow control (IEEE 802.3x)
Wake-on-LAN (WoL) and remote wake-up functions
Compatible with IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.1, and VLAN standards

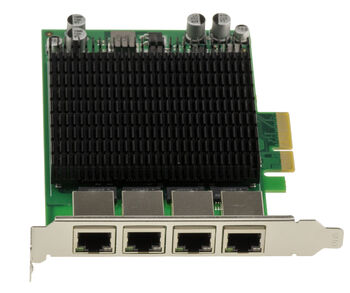

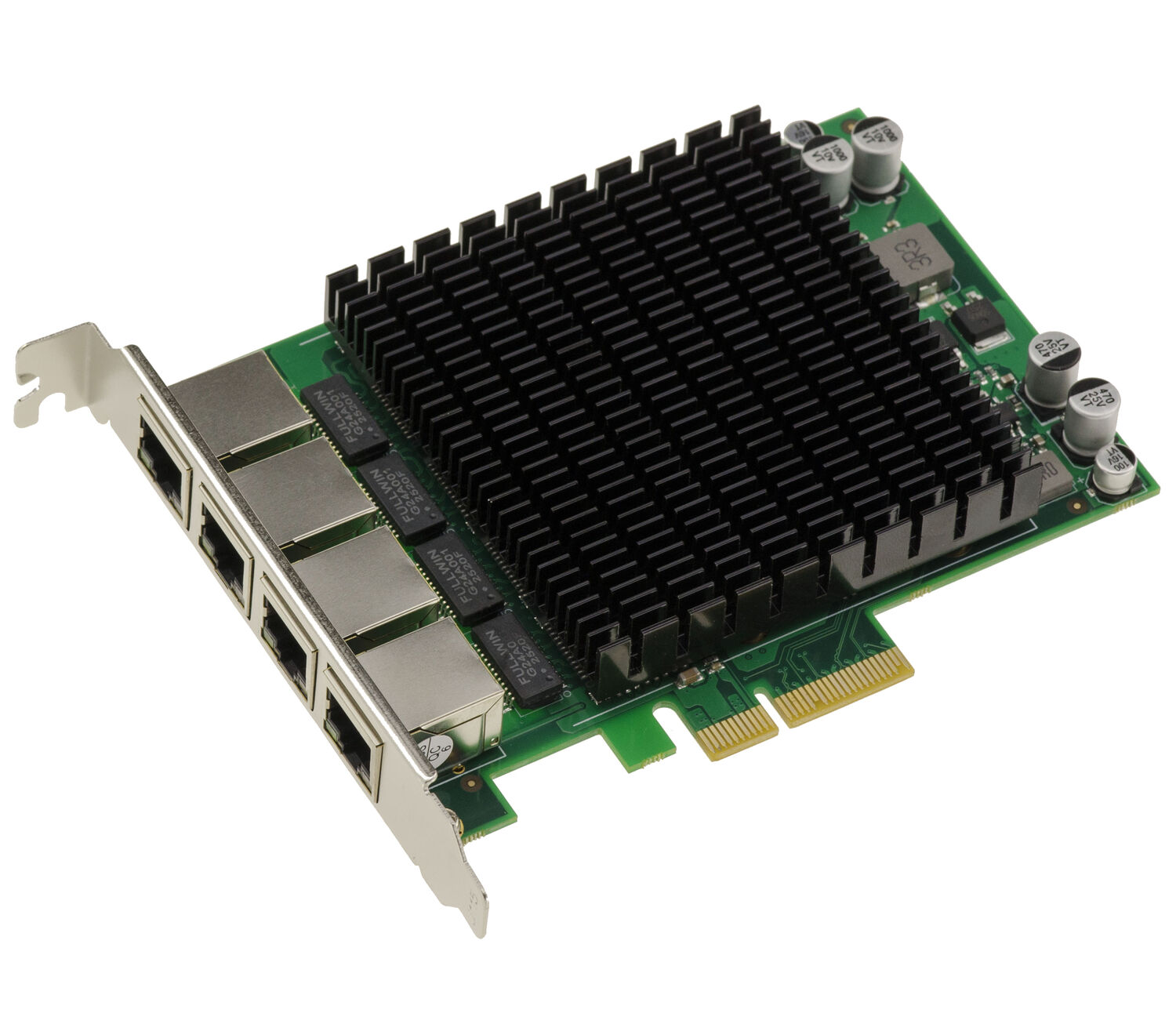

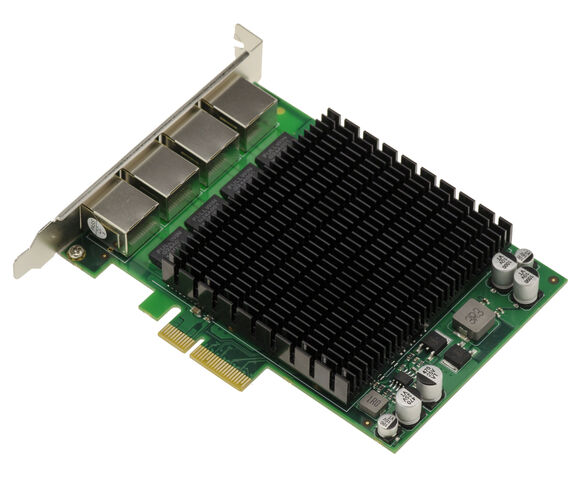

Large heat sink with thermal paste on each chip for optimal cooling
Oversized capacitors to ensure maximum reliability during intensive use
Integrated activity LEDs
Comes with installation CD
High profile format only
|
