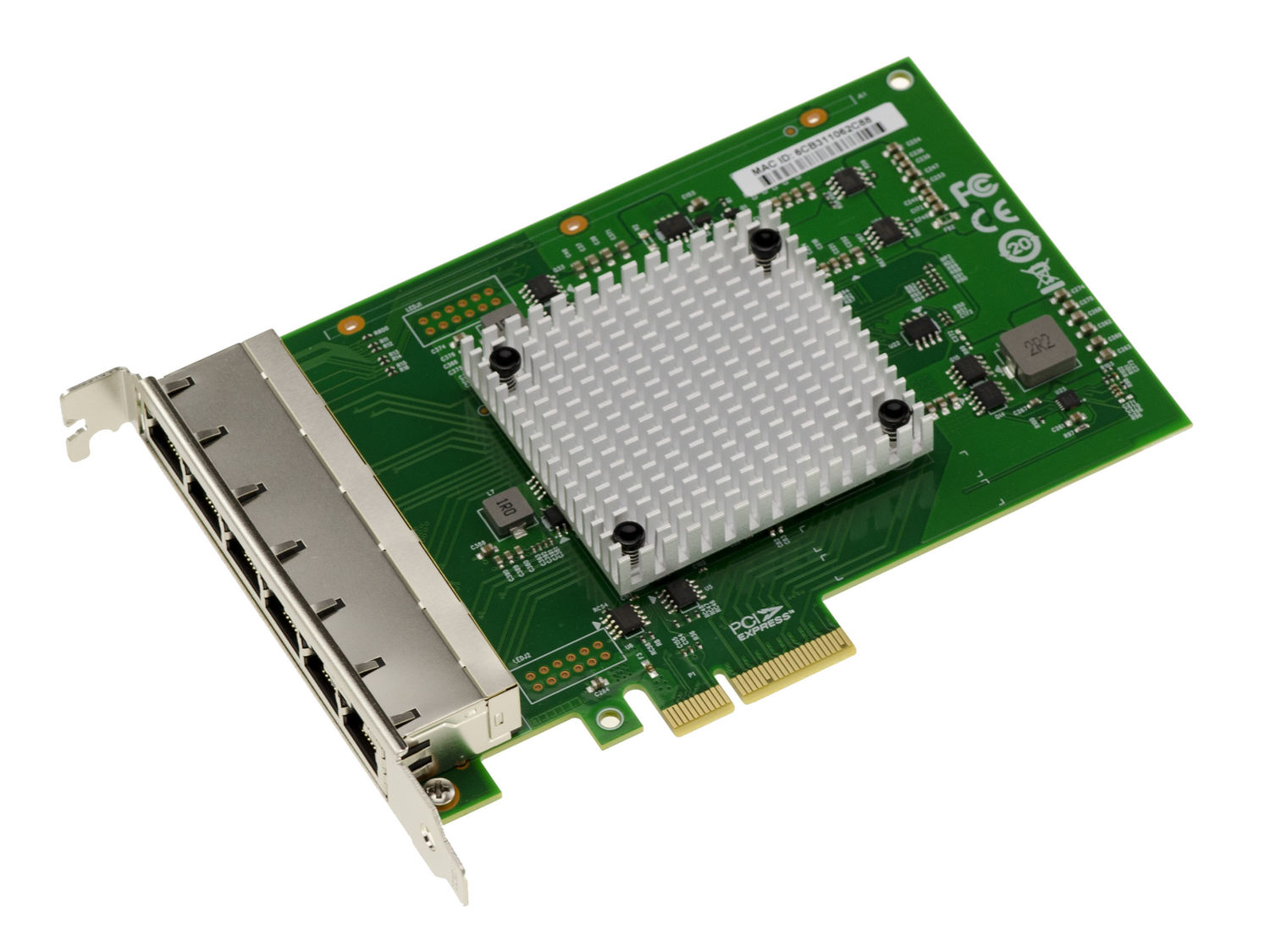

PCIe x4 Network Card 6 Gigabit LAN RJ45 Ethernet 10 100 1000 1G - Dual CHIPSET Intel I350 NIC - Industrial Series

PCIe 6 Port Ethernet Server Card

Controller : Intel I350AM4 (x1) and I350AM2 (x1)
Cable medium : Copper cable
- Cat 5E /and Cat6:1000Base-T up to 100m
- Cat 5E and Cat6:100Base-T up to 100m

Full-height Bracket
Thermal design power consumption (max) 7.04W

Operating system support

Windows XP Vista 7 8 8.1 10 Server 2003R2 2008R2 2012R2 2016R2 2019R2,
Linux Stable Kernel version 2.4.x / 2.6.x / 3.x /4.x or later, Red Hat Enterprise Linux 5 / 6 / 7 or later, SUSE Linux Enterprise Server 10/11 or later, VMware ESX/ESXi 4.x/5.x/6.x or later, FreeBSD 9 / 10 or later.

Connector : 6 * 8-Pin RJ45
Bus Type : PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4;compatible with x8,x16
Rate 10/100/1000Mbps
Support : Ethernet Power Management, IEEE* 802.3 Automatic negotiation.
Compliant 10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3u 100Base-TX Fast Ethernet, 802.1Q VLAN, 802.3, 802.3x.
Support PCI-SIG* SR-IOV / Jumbo frame packet / VMDq / PXE / DPDK
LED Indicators Link/Act
