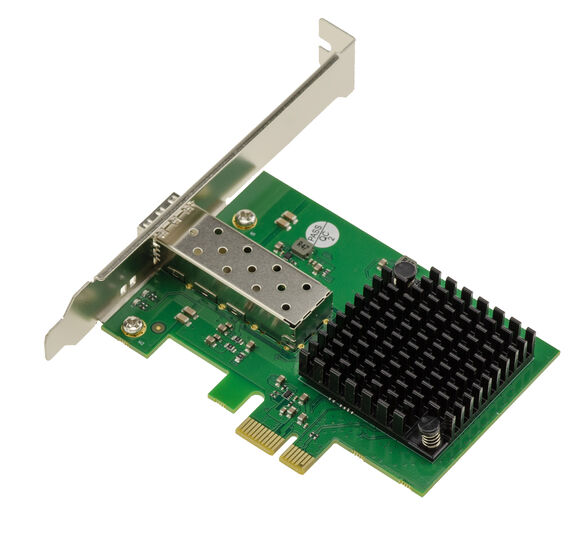

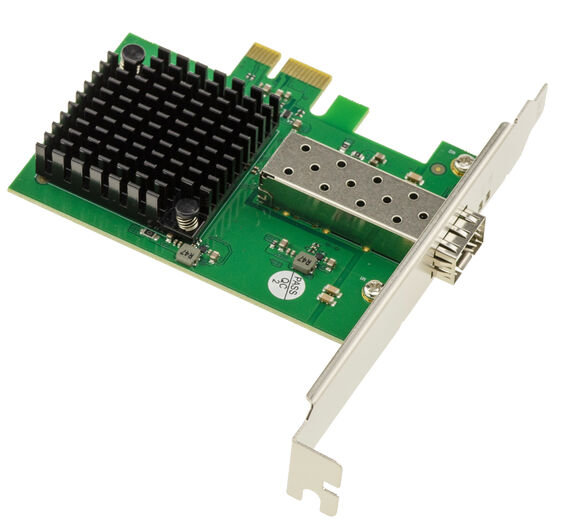

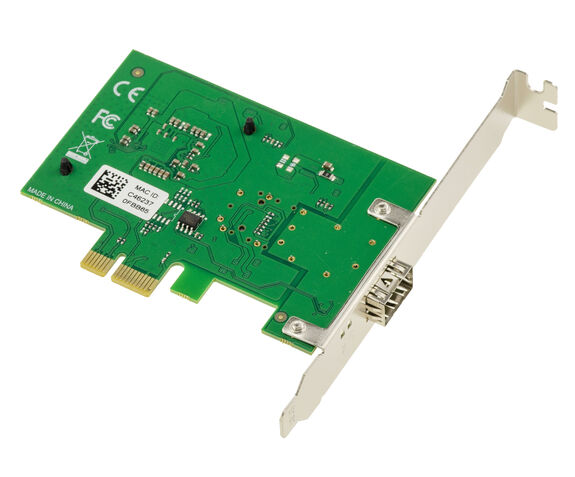

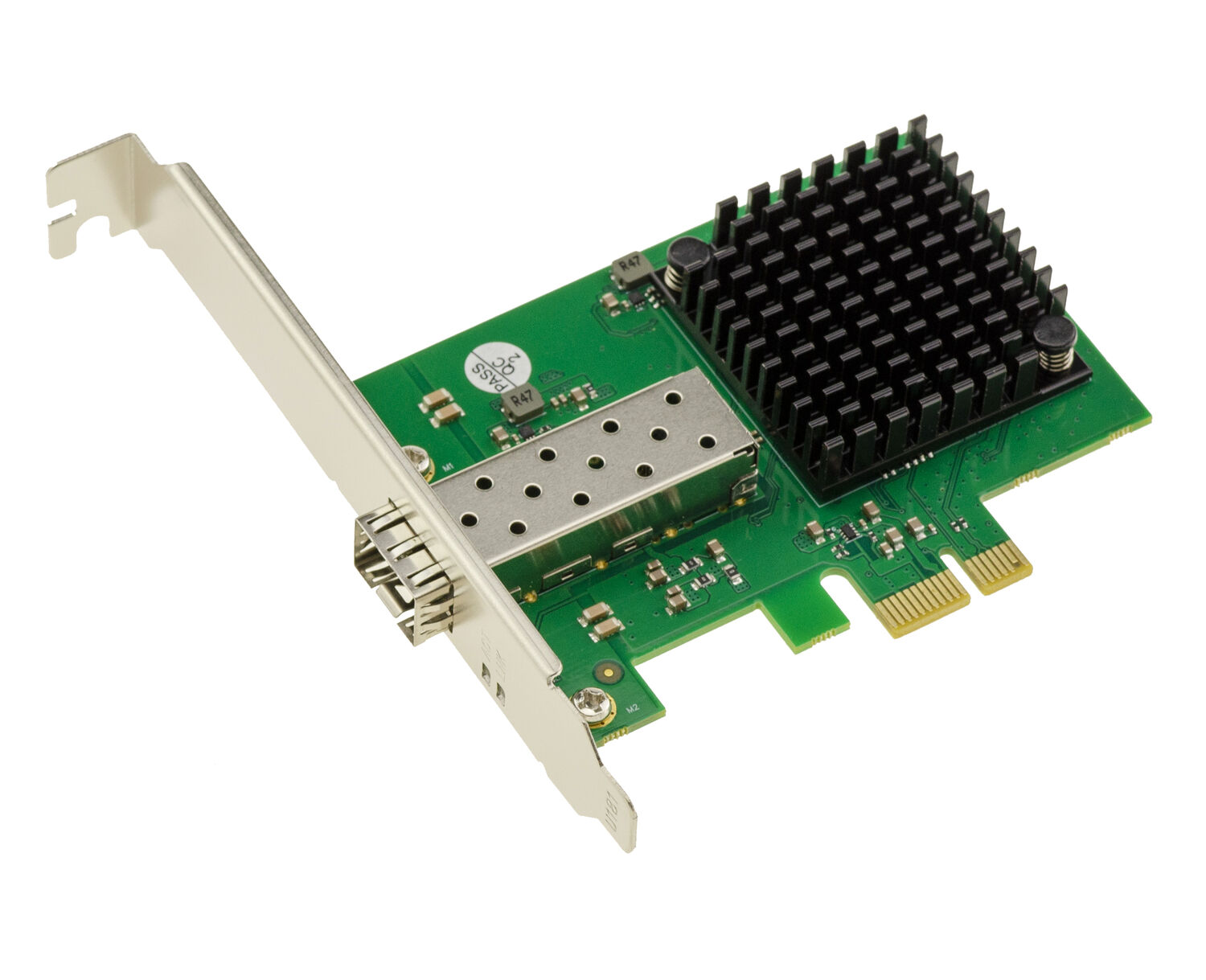

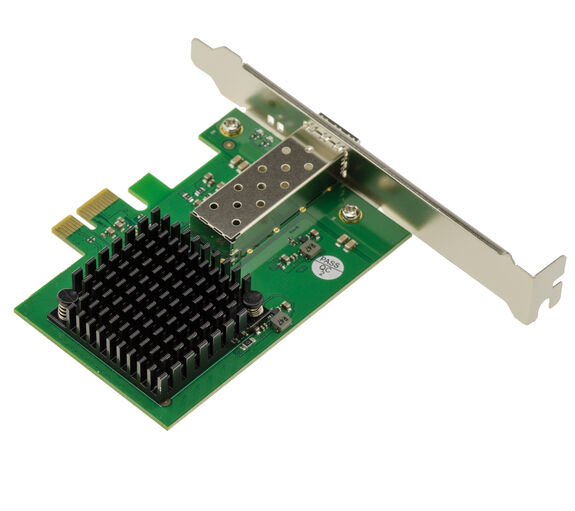

PCIe x4 Gen 4.0 network controller card with one 10G SFP+ port, featuring the REALTEK RTL8127 chipset, low power consumption, and passive cooling

A multi-gigabit network card supporting speeds up to 10G that provides fast and reliable Ethernet connectivity for servers and workstations. It supports multi-speed networks and offers broad compatibility with operating systems. This new RTL8127 chipset offers two major advantages: low power consumption and moderate heat generation.

Note: This card is designed for use on a Gen 4.0 x1 port. If you use it on a Gen 3.0 port, it will function but its throughput will be halved.

Compatibility:

PCIe Gen 4.0 x1 card.

Compatible with all networks up to 10 Gigabit (1G and 10G).

Supports Windows 10/11 and Linux kernel 2.4.x or 2.6.x and later versions.

Features:

PCIe Gen 4 x1 interface.

Realtek RTL8127ATF chipset.

Compatible with 10G and 1G network speeds.

Supported standards: IEEE 802.3 / 802.3z / 802.3ae / 802.1Q VLAN / 802.1ad Q-in-Q. Maximum power consumption: 1.79 W at 10G.

Supports Jumbo Frames up to 16 KB.

IEEE 802.1Q VLAN TAG and 802.1ad Q-in-Q.

Hardware checksum and segmentation offload, reducing CPU load by 40–60%.

Supports Wake-on-LAN, PXE / EFI network boot.

IEEE 802.3x flow control in full-duplex mode.

Operating temperature: 0 °C to +70 °C, passive cooling, no fan required.

Maximum distance: 10GBASE-SR 300 m (OM3/OM4 multimode), 10GBASE-LR 10 km (OS2 single-mode), 10GBASE-ER 40 km (OS2 single-mode), DAC Twinax 1 to 7 m (direct-attach copper).

Dimensions: 95 mm × 70 mm.

Weight: 90 g.

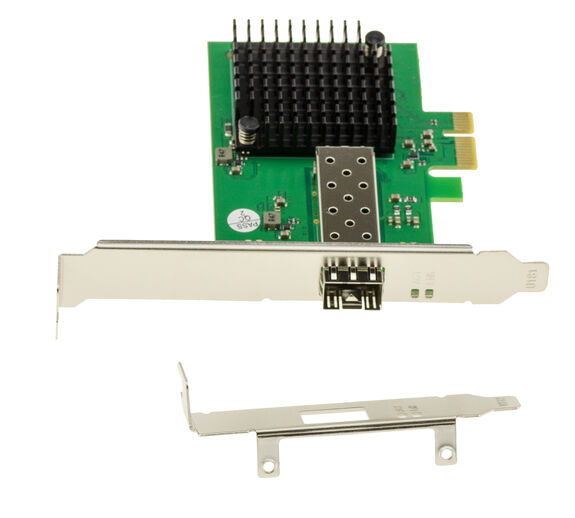

Supplied with two mounting brackets (low-profile and high-profile).
