Features :

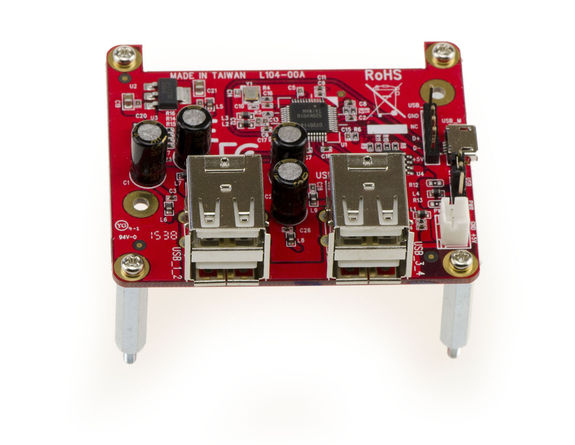

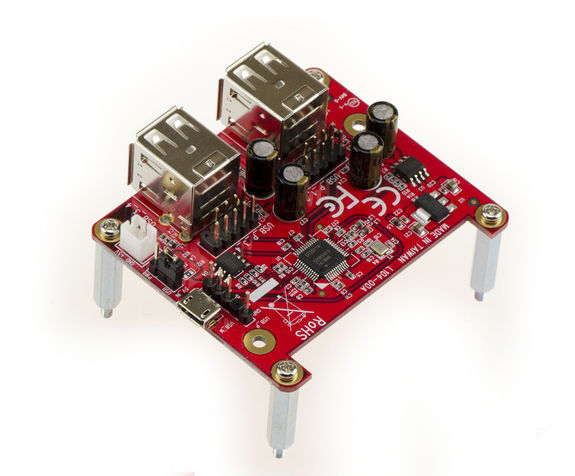

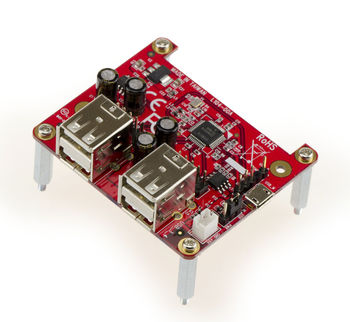

Four Ports USB Power Hub Board
Selection of 2Pin power wafer for extra enough 5V power input when Pi application need power hungry USB devices installed
Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
Both USB micro-B connector and USB 5Pin Pinheader on board for Pi connection
USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND
Four downstream USB A connectors and two USB 2x5Pin Pin Header to four USB devices connecting
2x5 USB2.0 Pin out Assignments 5V,D-,D+,GND,NC,5V,D-,D+,GND,Key
Jumper selection either 2Pin wafer of external 5V power or Pi USB bus power to power PCBA & 4x USB Devices
Includes Multi-Pi mounting accessory of standoff & nut & screw
Fully RoHS compliant
