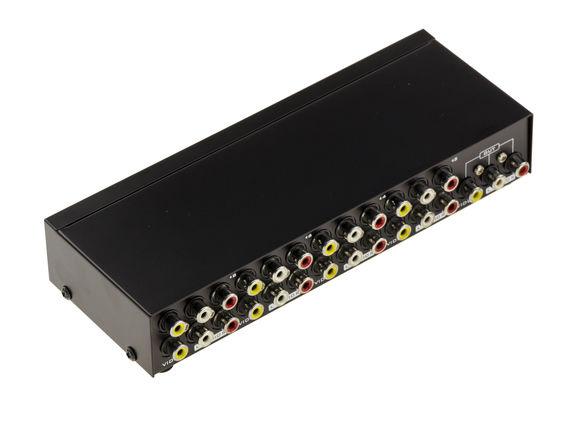

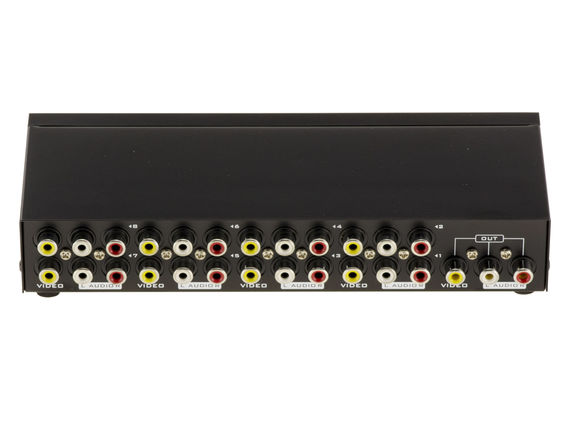

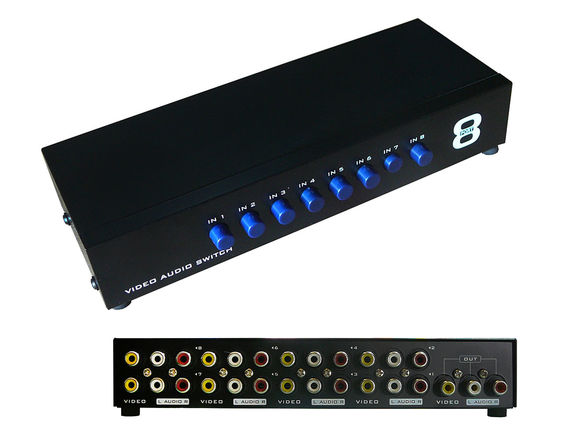

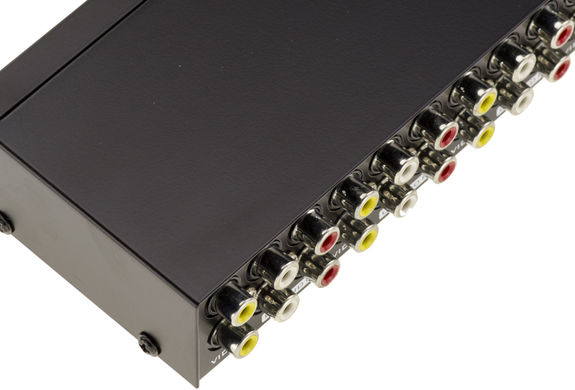

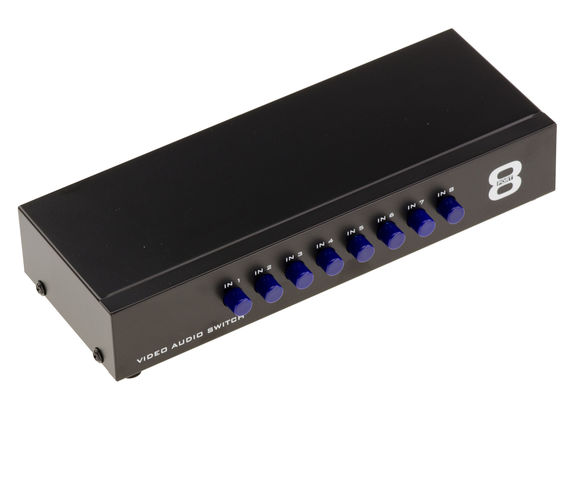

Switch Audio Stereo + Video Composite - 8 Ports - Needle One input to 8 Outputs or 8 inputs to One Output

Feature:
8 Ports 8-In 1-Out
Manual AV Switch
Installation fast, easy operation
Eight inputs, One output
Apply to security or education and so on
Stronger anti- interference ability and Perfect stability

Product description:
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75O
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75O
Bandwidth: 50Hz-5.5MHz

Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47KO
Output Video Signal: 2V(RMS)
Output Impedance: 1KO
Frequency: 10Hz-20KHz, 0db
8 Ports input (Left and Right Channels) and 1 Port output (Left and Right Channels)
