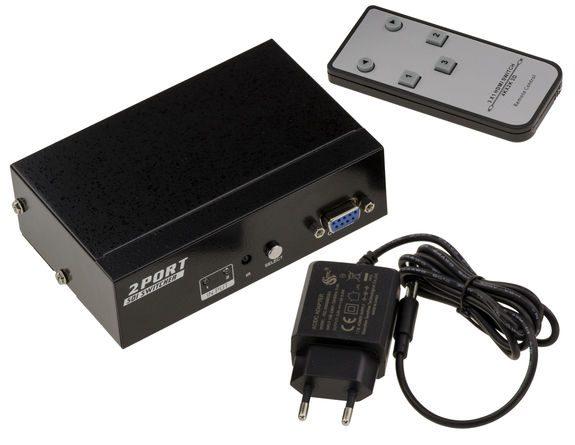

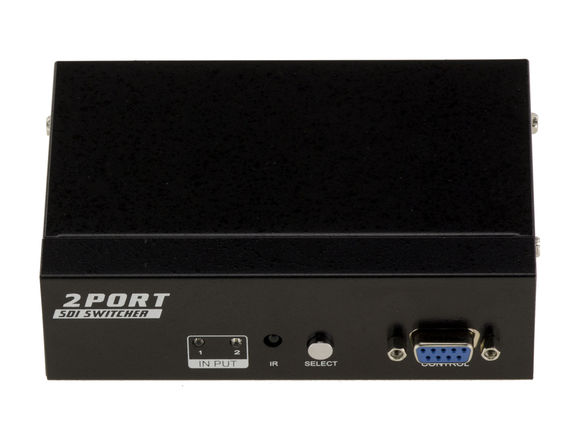

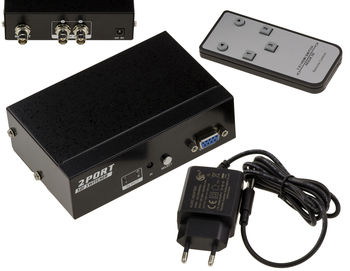

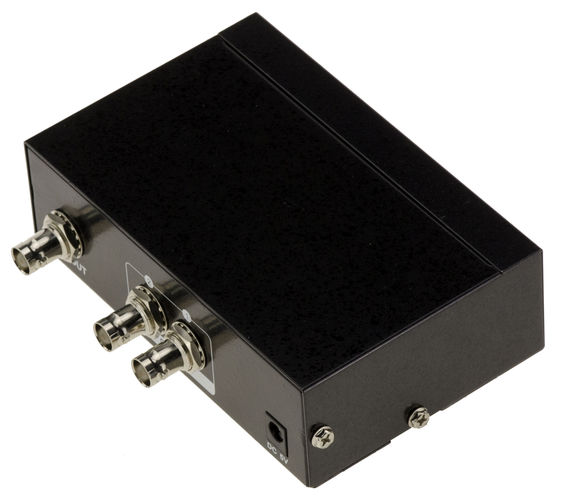

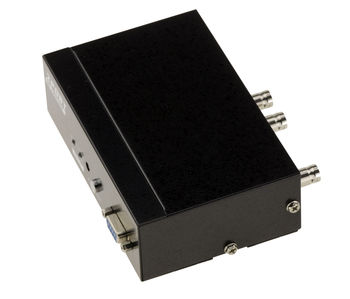

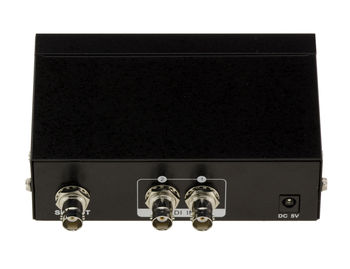

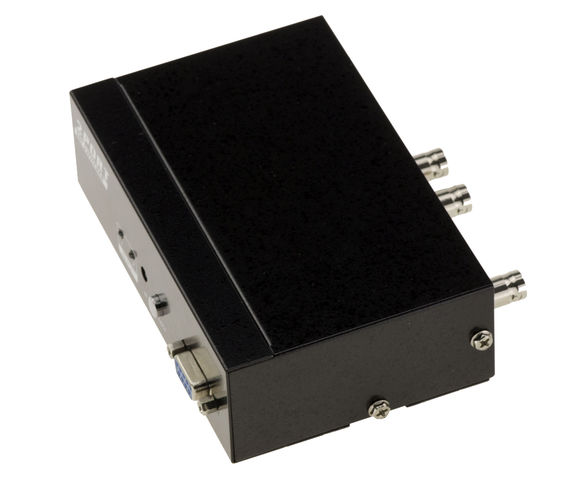

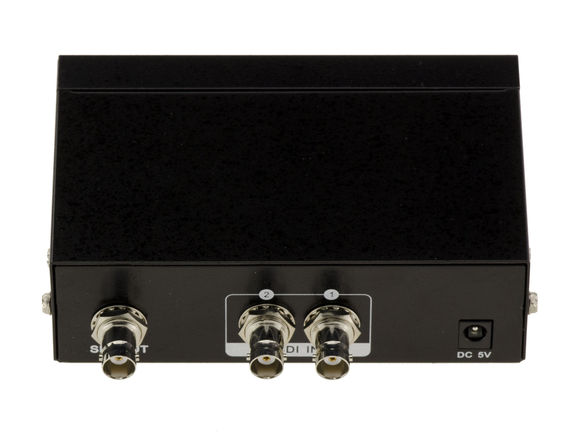

2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability.

zoom

see also : 2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability. 2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability. 2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability. 2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability. 2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability. 2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability.

non-contractual photo

2-Port SDI switch, switch 2 BNC SDI inputs to one output. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible, with REMOTE CONTROL and RS232 COM port control capability.

SDI 2 Port Switch. SD-SDI/HD-SDI and 3G-SDI 297MB/s compatible

Ref. Switch SDI - 2 Ports
KALEA-INFORMATIQUE
3760306797413
New 83.25 € Not including tax 99.90 € Including tax

In stock

quantity

Back in stock notification
Receive an alert by email when your choice is in stock
Your e-mail*:
Close

Send this page to a friend

Product Details

This system works like a switcher from one of 2 possible sources to a single output.

Specifications:
1 Output and 2 Inputs via BNC SDI connector.
Compatible with SD-SDI / HD-SDI and 3G-SDI.
Flip between inputs via front-panel pushbutton, infrared remote control supplied, or control via RS232 port.
External 5V power supply included.
Metal structure.
Maximum transmission distance: 300m.
Bit rate 143MB/s to 2970MB/s.
Maximum supported resolution 1920x1200.
The switch is passive: it neither touches nor amplifies the signal.
Dimensions: 132 x 89 x 42 mm - Weight 380g.
