USB 3.2 Gen 2x2 20 Gbps & Gen 2x1 10 Gbps to 10G Ethernet RJ45 Adapter, 10/5/2.5/1 Gbps Network, Realtek RTL8159 Chipset

Instantly transforms a USB-C port into a high-speed 10GBASE-T network interface. Based on the Realtek RTL8159 chipset, it delivers near-10G performance without requiring a PCIe slot.

Compatibility:

Natively supported by Windows 10/11, Linux (kernel 5.8 or higher), macOS (driver required)

Compatible with TrueNAS, UnRAID, Proxmox, VMware ESXi (via USB passthrough).

Connect to a USB Type-C port (USB 3.2 Gen 2). Compatible with USB 3.2 Gen 2x1 (10G), but use on USB 3.2 Gen 2x2 (20 Gbps) is recommended for maximum performance.

For use on an RJ45 network with Cat6a or higher cabling for 10G connectivity.

Technical specifications:

Realtek RTL8159 chipset.

USB Type-C host interface (USB 3.2 Gen2).

RJ45 10GBASE-T network port.

Automatic detection of 10G / 5G / 2.5G / 1G / 100M / 10M speeds.

Observed actual speeds: 9.45 Gbps (USB 3.2 Gen 2x2 20G), 7.2 Gbps (USB 3.2 Gen 2x1 10G), 3.54 Gbps (USB3 5G)

IPv4 / IPv6 / TCP / UDP hardware offload (40–60% CPU reduction).

Supports Jumbo Frames up to 16 KB.

Compatible with Wake-on-LAN and RealWoW.

ARP and NS offload.

Compliant with IEEE 802.3an / 802.3bz / 802.3ab.

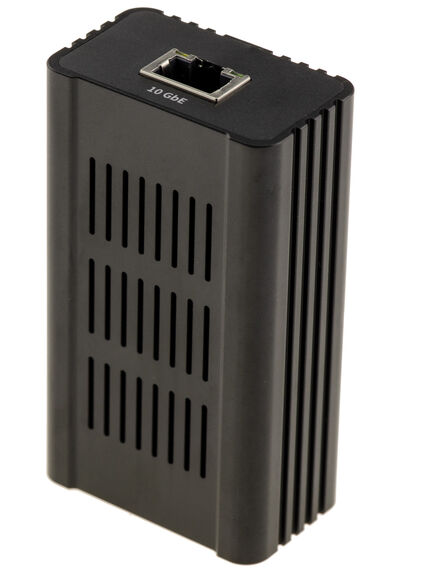

Aluminum housing, with a heat sink on the top and ventilation slots on the base: cooling is passive, so it is completely silent.

Dimensions 84.4 × 48 × 29 mm.

Weight 195 g.
