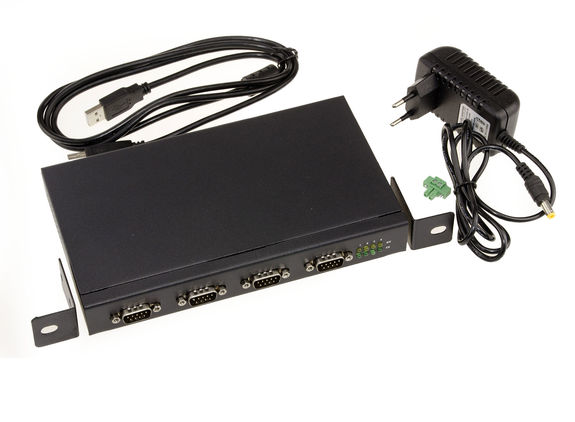

USB to 4 PORTS RS232 converter - RACKABLE METAL CASE - RS-232 interface via DB9 plug - INDUSTRIAL RANGE
RS232 to USB converter - 4 INDEPENDENT PORTS - INDUSTRIAL - RACKABLE
Ref. Convertisseur RS232 - 4x USB - INDUSTRIEL - IO
KALEA-INFORMATIQUE
3045148592366
Product Details
This accessory emulates four RS232 ports using a USB plug. The ports will appear in the device manager as 'real' serial ports, whose addresses you can edit.
Specifications:
Compliant with USB1.1, 1.0 and 2.0 standards.
EIA RS-232 compliant.
USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second).
USB signals: VCC, DATA+, DATA-, GND and FG.
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI.
Automatic flow control.
Transfer rate 230400bps, automatic detection of serial interface transfer rate.
UART support 7/8 bit data, 1/2 stop bits, and Parity Odd/Even/Mark/Space/No.
Range: 5 M on RS-232 side, 5 M (maximum) on USB side.
±15KV ESD protection.
B female interface on USB side (A/B cord supplied, type A PC side connection), DB9 male on RS232 side.
Front panel indications: Send (TXD) and Receive (RXD).
Compatible with bus powered, self powered and high power bus powered USB.
Power supply DC 5V, optional "terminal block power connections" (9-36 DC ).
Rackable (brackets supplied).
Metal case.
Windows 2000, Server 2003, Server 2008,2012, Windows XP,XP Embedded, Vista, 7/8/8.1/10, CE 4.2, 5.0, 5.2, 6.0 Linux (2.4 and higher) and Linux x86_64.
Specifications:
Compliant with USB1.1, 1.0 and 2.0 standards.
EIA RS-232 compliant.
USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second).
USB signals: VCC, DATA+, DATA-, GND and FG.
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI.
Automatic flow control.
Transfer rate 230400bps, automatic detection of serial interface transfer rate.
UART support 7/8 bit data, 1/2 stop bits, and Parity Odd/Even/Mark/Space/No.
Range: 5 M on RS-232 side, 5 M (maximum) on USB side.
±15KV ESD protection.
B female interface on USB side (A/B cord supplied, type A PC side connection), DB9 male on RS232 side.
Front panel indications: Send (TXD) and Receive (RXD).
Compatible with bus powered, self powered and high power bus powered USB.
Power supply DC 5V, optional "terminal block power connections" (9-36 DC ).
Rackable (brackets supplied).
Metal case.
Windows 2000, Server 2003, Server 2008,2012, Windows XP,XP Embedded, Vista, 7/8/8.1/10, CE 4.2, 5.0, 5.2, 6.0 Linux (2.4 and higher) and Linux x86_64.
