USB to 8 PORTS RS422 RS485 converter - INDUSTRIAL - RACKABLE - RS-422 RS-485 wire-to-wire or DB9 plug interface - INDUSTRIAL RANGE
RS422 RS485 to USB converter - 8 INDEPENDENT PORTS - INDUSTRIAL - RACKABLE
Ref. Convertisseur RS422485 - 8xUSB - INDUSTRIEL - IO
KALEA-INFORMATIQUE
3045148592380
Product Details
8X RS-422 or RS-485 to USB converter
Use:
This accessory emulates EIGHT RS422 OR RS485 ports using a USB plug. The ports will appear in the Device Manager as 'real' serial ports, whose addresses you can edit.
Specifications:
Compliant with USB1.1, 1.0 and 2.0.
EIA RS-485 and RS-422 compliant.
USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second).
USB signals: VCC, DATA+, DATA-, GND and FG.
RS-422 signals: T/R+,T/R-,RXD+,RXD-,GND.
RS-485 signals: T/R+,T/R-,GND.
Supported modes: Asynchronous Mode, Point-To-Point or Point-To-Multipoint, 2-wire Half-Duplex, 4-wire Full-Duplex.
UART support 7/8 bit data, 1/2 stop bits, and Parity Odd/Even/Mark/Space/No.
Transfer rate 230Kbps, automatic detection of serial interface transfer rate.
Load capacity: Point-To-Multipoint supports up to 128 devices.
Range: 5000 M on RS-485/422 side, 5 M (maximum) on USB side.
±15KV ESD protection.

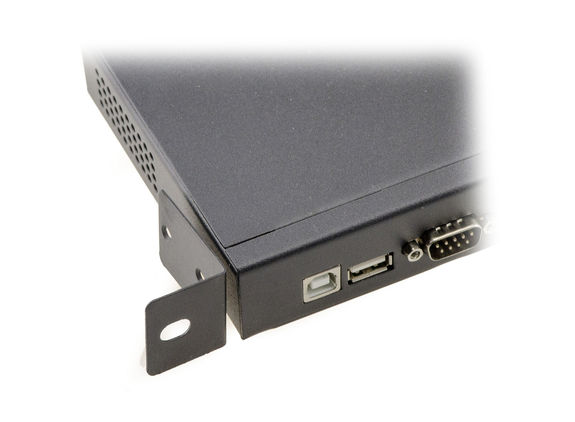

USB-side B female interface (A/B cable supplied, type A PC-side connection), RS-422/485-side DB9 male.
Front panel indications: Send (TXD) and Receive (RXD).
Compatible with bus powered, self powered and high power bus powered USB.
Power supply DC 12V, optional "terminal block power connections" (9-36 DC ).
Rackable (brackets supplied).
Metal case.
Windows 2000, Server 2003, Server 2008,2012, Windows XP,XP Embedded, Vista, 7/8/8.1/10, CE 4.2, 5.0, 5.2, 6.0. Linux (2.4 and above) and Linux x86_64.
Use:
This accessory emulates EIGHT RS422 OR RS485 ports using a USB plug. The ports will appear in the Device Manager as 'real' serial ports, whose addresses you can edit.
Specifications:
Compliant with USB1.1, 1.0 and 2.0.
EIA RS-485 and RS-422 compliant.
USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second).
USB signals: VCC, DATA+, DATA-, GND and FG.
RS-422 signals: T/R+,T/R-,RXD+,RXD-,GND.
RS-485 signals: T/R+,T/R-,GND.
Supported modes: Asynchronous Mode, Point-To-Point or Point-To-Multipoint, 2-wire Half-Duplex, 4-wire Full-Duplex.
UART support 7/8 bit data, 1/2 stop bits, and Parity Odd/Even/Mark/Space/No.
Transfer rate 230Kbps, automatic detection of serial interface transfer rate.
Load capacity: Point-To-Multipoint supports up to 128 devices.
Range: 5000 M on RS-485/422 side, 5 M (maximum) on USB side.
±15KV ESD protection.
USB-side B female interface (A/B cable supplied, type A PC-side connection), RS-422/485-side DB9 male.
Front panel indications: Send (TXD) and Receive (RXD).
Compatible with bus powered, self powered and high power bus powered USB.
Power supply DC 12V, optional "terminal block power connections" (9-36 DC ).
Rackable (brackets supplied).
Metal case.
Windows 2000, Server 2003, Server 2008,2012, Windows XP,XP Embedded, Vista, 7/8/8.1/10, CE 4.2, 5.0, 5.2, 6.0. Linux (2.4 and above) and Linux x86_64.
